FMK5GL-K201 / 1731110218, FCT from Molex FMK Series Die Cast Zinc D Sub Backshell, 50 Way, Strain Relief

FMK Series Metal Hoods, Straight and Angled 45°

These FMK Series Metal Hood Backshells have a Large Inner Chamber and an Angled or Straight Cable Outlet. This large amount of internal space is particularly suitable for D-sub connectors with special contacts. The design of the FMK Series Metal Hood Backshell includes strain relief on the cable outlet. The FMK Series Metal Hood Backshell is easy to assemble thanks to the catch spring system and pre-mounted locking screws. The FMK Series Metal Hood Backshells can be used with engagement hooks and locking or knurled screws.

FMKx: Angled
FMKxG: Straight
FMKxx-K201: Large Cable Outlet
FMKx-4881: Dual Cable Outlet

Note

Stock number 764-9668 has dual cable (Ø8 → 12 mm) entry slot

Warning

Stock no. 291-6288 is supplied without anti-kink feature

Approvals

UL E168813

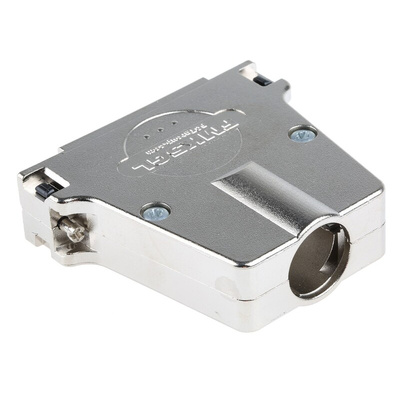

FCT from Molex D-Sub Backshell, 50 Contacts, Nickel Housing - FMK Series - FMK5GL-K201 / 1731110218

Use this FCT from Molex backshell to protect your D-sub connectors from challenging industrial environments. It has a large inner chamber to accommodate adapters that have special contact configurations, so it's a versatile choice for your setup. The die-cast zinc body is durable and resistant to corrosion, so you can depend on this backshell for long-term performance. As it weighs just 126g, it's easy to handle during installation and won't put strain on your equipment.

• Integrated strain relief protects the cable from twisting at sharp angles
• Operating temperature range of -35°C to +100°C ensures reliable performance in harsh industrial settings

Applications

• Oil and gas plants
• Transportation industry

Are screws supplied with this connector?

Yes, screws are supplied for the outer body, as well as for the internal cable clamps, so it comes ready to install.

FMK_FMKG

Datasheet

D Sub Connector Back Shell Datasheet
