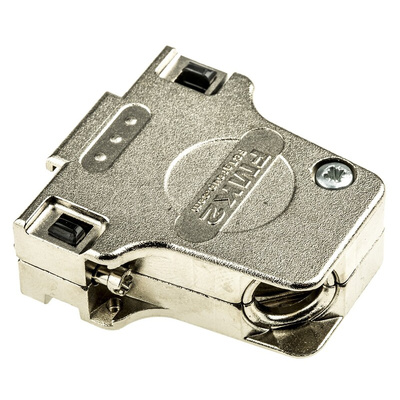

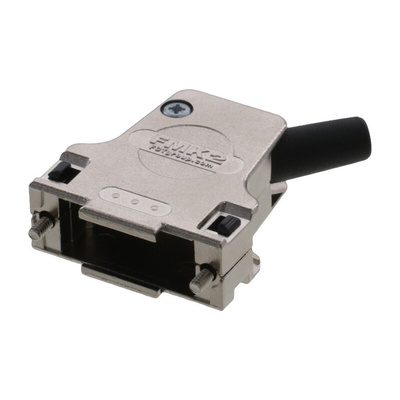

FMK2 / 1727040097, FCT from Molex FMK Series Die Cast Zinc Angled D Sub Backshell, 15 Way, Strain Relief

FMK Series Metal Hoods, Straight and Angled 45°

These FMK Series Metal Hood Backshells have a Large Inner Chamber and an Angled or Straight Cable Outlet. This large amount of internal space is particularly suitable for D-sub connectors with special contacts. The design of the FMK Series Metal Hood Backshell includes strain relief on the cable outlet. The FMK Series Metal Hood Backshell is easy to assemble thanks to the catch spring system and pre-mounted locking screws. The FMK Series Metal Hood Backshells can be used with engagement hooks and locking or knurled screws.

FMKx: Angled
FMKxG: Straight
FMKxx-K201: Large Cable Outlet
FMKx-4881: Dual Cable Outlet

Note

Stock number 764-9668 has dual cable (Ø8 → 12 mm) entry slot

Warning

Stock no. 291-6288 is supplied without anti-kink feature

Approvals

UL E168813

FCT from Molex D-Sub Backshell With Strain Relief, 15 Way - FMK Series - FMK2 / 1727040097

Install this FCT from Molex D-sub backshell to stabilise and shield sensitive connections from EMI and RFI. It's a robust and durable receptacle specifically designed to protect connectors and let systems run smoothly. The lightweight die-cast zinc housing won't add strain or drag to your equipment. Locking screws secure and keep the backshell in place for reliable connections that won't shake loose when subjected to jolts or vibrations.

• Large inner chamber easily accommodates D-sub connectors with special contacts
• Strain relief limits stress on connector cables for reliable signal transfers
• Catch-spring and pre-mounted locking screws help with quick and easy installation
• Strong and long-lasting unit can be used in harsh environments and with heavy-duty applications

Applications

• Automotive industry
• Aerospace applications
• Automated assembly and processing lines

How do I determine the size of a D-sub backshell?

You need to look at the size of your connector to determine the size of your D-sub backshell. The connectors have 9, 15, 25, 37 or 50 pins or contacts. D-sub backshells are sized according to these. This particular D-sub backshell is 15-way to accommodate a 15-pin connector.
