FMK4 / 1727040101, FCT from Molex FMK Series Die Cast Zinc Angled D Sub Backshell, 37 Way, Strain Relief

FMK Series Metal Hoods, Straight and Angled 45°

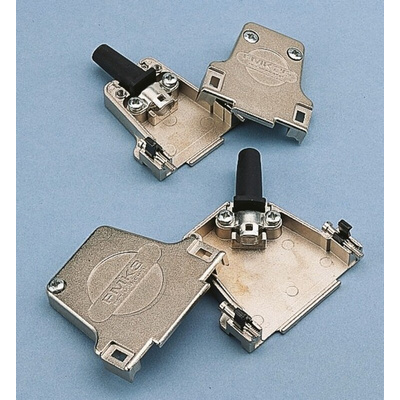

These FMK Series Metal Hood Backshells have a Large Inner Chamber and an Angled or Straight Cable Outlet. This large amount of internal space is particularly suitable for D-sub connectors with special contacts. The design of the FMK Series Metal Hood Backshell includes strain relief on the cable outlet. The FMK Series Metal Hood Backshell is easy to assemble thanks to the catch spring system and pre-mounted locking screws. The FMK Series Metal Hood Backshells can be used with engagement hooks and locking or knurled screws.

FMKx: Angled
FMKxG: Straight
FMKxx-K201: Large Cable Outlet
FMKx-4881: Dual Cable Outlet

Note

Stock number 764-9668 has dual cable (Ø8 → 12 mm) entry slot

Warning

Stock no. 291-6288 is supplied without anti-kink feature

Approvals

UL E168813

FCT from Molex D-Sub Backshell Hood, C Shell Size, 37 Contacts - FMK Series - FMK4 / 1727040101

Use this FCT from Molex D-sub backshell unit to relieve tension in cable connections in your system. As it accommodates up to 37 contact connections, it protects a large number of wires and minimises stress-induced damage. It has a 45° angled body orientation to enable cable routing in confined spaces. Built-in rubber bushing protects wires and helps to prolong the service life of attached cables.

• Cable diameter compatibility of 3 to 12mm for versatility
• Comes with pre-mounted locking screws for straightforward installation
• Die-cast zinc housing for durability

Applications

• Automotive industry
• Electrical engineering
• Industrial processing

Can I use this backshell hood in demanding conditions?

Yes, this unit tolerates temperatures between -35°C and +100°C, so you can rely on it in harsh environments.

FMK_FMKG

D Sub Connector Back Shell Datasheet

Datasheet - FMK4 / 1727040101
