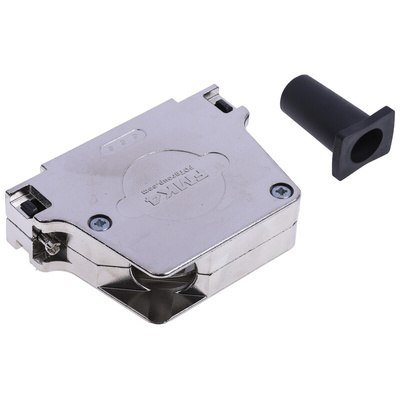

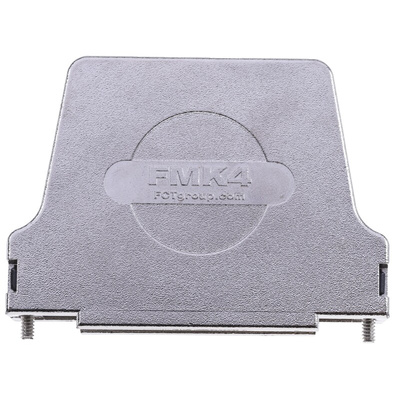

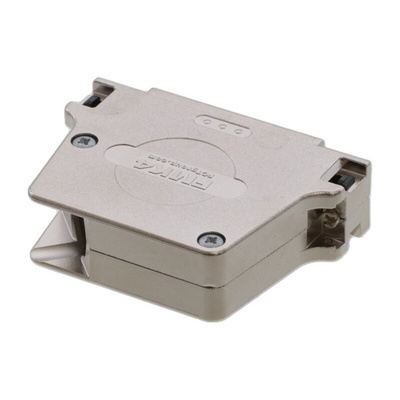

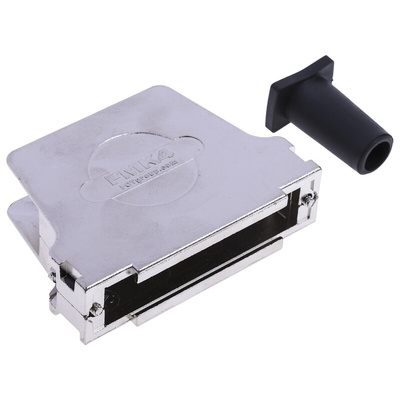

FMK4-K201 / 1731110063, FCT from Molex FMK Series Die Cast Zinc Angled D Sub Backshell, 37 Way, Strain Relief

FMK Series Metal Hoods, Straight and Angled 45°

These FMK Series Metal Hood Backshells have a Large Inner Chamber and an Angled or Straight Cable Outlet. This large amount of internal space is particularly suitable for D-sub connectors with special contacts. The design of the FMK Series Metal Hood Backshell includes strain relief on the cable outlet. The FMK Series Metal Hood Backshell is easy to assemble thanks to the catch spring system and pre-mounted locking screws. The FMK Series Metal Hood Backshells can be used with engagement hooks and locking or knurled screws.

FMKx: Angled
FMKxG: Straight
FMKxx-K201: Large Cable Outlet
FMKx-4881: Dual Cable Outlet

Note

Stock number 764-9668 has dual cable (Ø8 → 12 mm) entry slot

Warning

Stock no. 291-6288 is supplied without anti-kink feature

Approvals

UL E168813

FCT from Molex D-Sub Backshell, 45° Connector Angle, 37 Ways - FMK Series - FMK4-K201 / 1731110063

Looking for a way to keep your D-sub connections secure? Choose this backshell by FCT from Molex. It accommodates 37 contacts to support complex communication applications. As the unit has a 45° connector angle, you can use it to make connections in hard-to-reach areas. Integrated shielding means the unit isn't disrupted by EMI, so you can be sure of reliable data transfer.

• Durable die-cast zinc housing for resistance to impact and corrosion
• Steel mounting screws protect against vibrations for reliable connections
• TPE bushing provides cable strain relief to prevent wear
• Wide operating temperature range between -35°C and +100°C for use in demanding conditions

Applications

• Networking applications
• Measuring devices
• Surveillance systems
• IT industry

Can I use this backshell in damp or dusty areas?

As this backshell isn't dust-tight or waterproof, you should avoid using it in dusty or humid environments.
