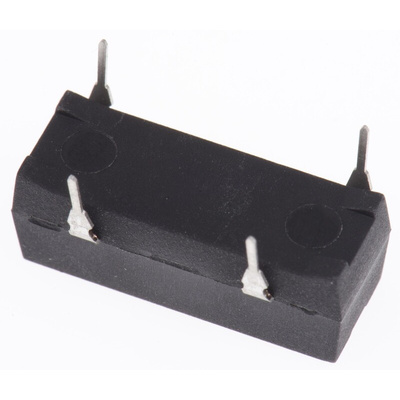

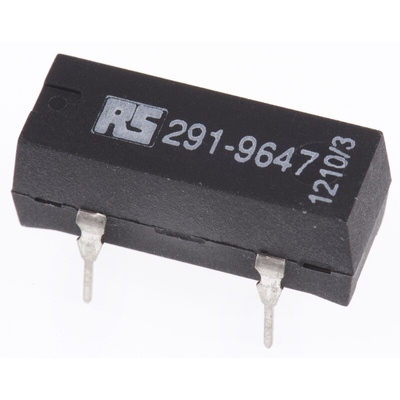

RS PRO PCB Mount Reed Relay, 24V dc Coil, SPST, 300V dc Max, 0.5 A Max, 2150Ω, Реле

RS PRO SPNO Reed Relay, 0.5 A, 24 V DC

This RS PRO reed relay controls the electromagnet in a non-armature reed switch. It's a fast-acting relay with an operating time (including bounce time) of 2 ms. The lack of mechanical movement inside the relay and relatively uncomplicated design also prevents wear and tear on the device.
For easy installation, the relay has industry-standard pin configurations that will pair with most circuits. Once in place, the seal of the switch area is airtight, preventing any dust or debris from getting in.
Reed relays only need a low level of power to operate making them an eco-friendly option for busy workplaces. They're ideal for use with mains Triac trigger devices.

Features and Benefits

• Coil power of 290 mW
• Coil resistance of 2.15 kΩ
• Coil voltage of 24 V DC
• SPNO (single pole normally open) contact configuration
• Tin-plated copper alloy contact material
• Contact resistance of 200 mΩ
• Isolation coil to contact of 2.5 kV DC
• Height of 7.5 mm
• Length of 19.3 mm
• Depth of 7 mm
• Maximum switching current of 0.5 A AC/DC
• Maximum switching power of 10 W DC
• Maximum switching voltage of 300 V AC/DC
• PCB mounting type
• Operating temperature range of -20°C to +70°C
• Operating time (including bounce) of 2 ms
• RoHS (Restriction of Hazardous Substances) compliant
• Through-hole terminal type

Approvals

UL
