RS PRO PCB Mount Reed Relay, 12V dc Coil, SPST, 300V dc Max, 0.5 A Max, 1000Ω, Реле

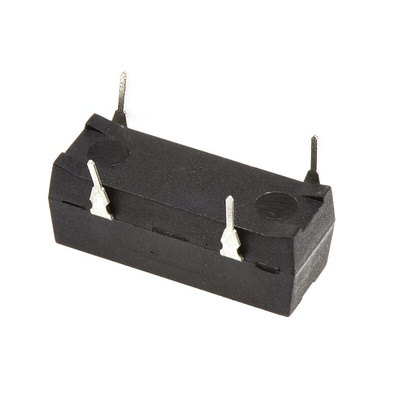

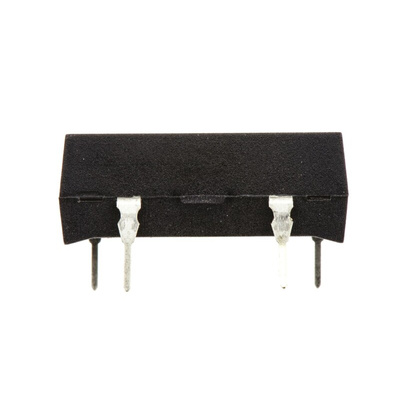

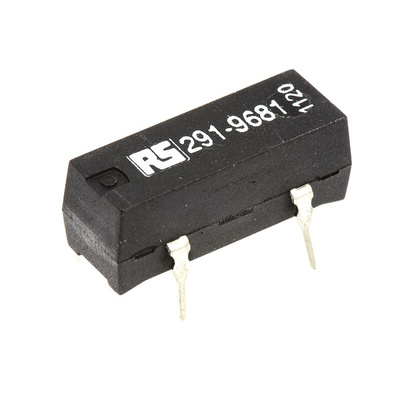

RS PRO SPNO Reed Relay, 0.5 A, 12 V DC

This RS PRO reed relay is used to control the electromagnet in a non-armature reed switch. Thanks to its operating time of 0.5 ms (including bounce time), it's fast-acting and well-suited for a variety of setups. The part has good resistance to wear and tear as the design is simple and there's no mechanical movement inside the relay.


The unit is easy to install, as its industry-standard pin configurations are compatible with most circuits. Once fitted, the switch area's seal is airtight to keep dirt and dust out.


This type of reed relay is commonly used with mains Triac trigger devices. It's an eco-friendly option for busy workplaces as it needs a low level of power to operate.

Features and Benefits

• Coil power of 145 mW


• Coil resistance of 1 kΩ


• Coil voltage of 12 V DC


• SPNO (single pole normally open) contact configuration


• Tin-plated copper alloy contact material


• Contact resistance of 200 mΩ


• Depth of 7 mm


• Height of 7.5 mm


• Length of 19.3 mm


• Isolation coil to contact of 2.5 kV DC


• Maximum switching current of 0.5 A AC/DC


• Maximum switching power of 10 W DC


• Maximum switching voltage of 300 V AC/DC


• PCB mounting type


• Operating temperature range of -20°C to +70°C


• Operating time (including bounce) of 0.5 ms


• RoHS (Restriction of Hazardous Substances) compliant


• Through-hole terminal type

Approvals

UL
