RS PRO PCB Mount Reed Relay, 5V dc Coil, SPDT, 175V dc Max, 0.25 A Max, 200Ω, Реле

RS PRO SPDT Reed Relay, 0.25 A, 5 V DC

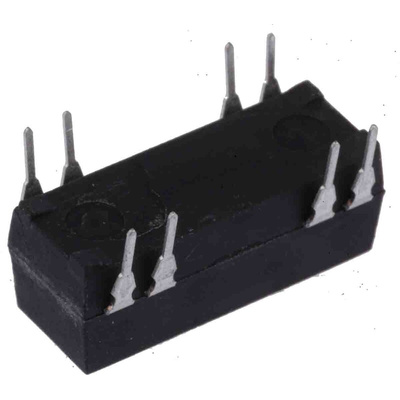

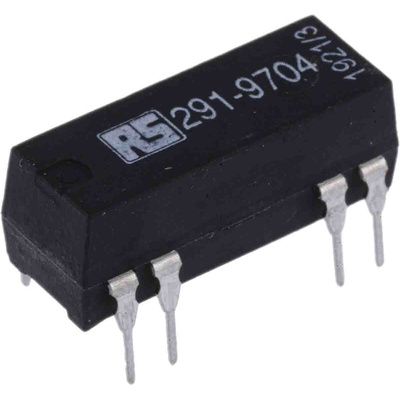

If you're looking for a compact, speedy relay to use in an electrical circuit, consider this RS PRO single-pole, normally open (SPNO) reed relay. The neat and low profile design features a mineral-filled casing, and the device has copper alloy pins for strength coupled with high conductivity. It has a maximum switching current of 0.25 A AC/DC and a coil voltage of 5 V DC.

You can use this relay on printed circuit boards thanks to its DIP (dual in-line package) housing and the casing is fully sealed. It features a normally open (NO) pole and a coil suppression diode across pins two and six.

Needing little power to actuate, you'll often find these types of relays used in electronic circuits. This product is UL (Underwriters Laboratories) approved and meets the organisation's international safety standards.

Features and Benefits

• Reed relay with SPNO contact configuration
• Maximum switching power of 3 W (DC)
• Maximum switching current rating of 0.25 A (AC/DC)
• Isolation coil to contact of 1.5 kV DC
• Maximum switching voltage of 175 V DC
• Life of 1000000000 electric cycles
• Operating time of 0.5 ms
• PCB mounting type
• Contact resistance of 150 (Static) mΩ and 200 (Dynamic) mΩ
• Operating temperature range of -20°C to +70°C
• Coil power of 50 mW
• Dimensions of 19.3 mm x 6.4 mm x 5.1 mm
• Coil voltage of 5 V DC
• Through-hole terminal
• Coil resistance of 200 Ω
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

UL
