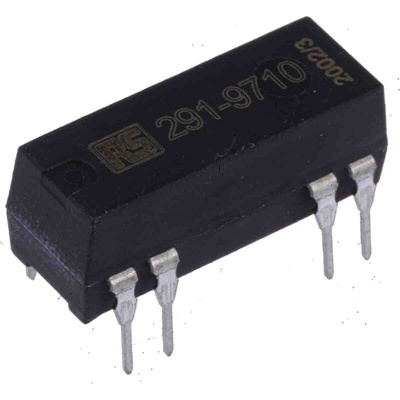

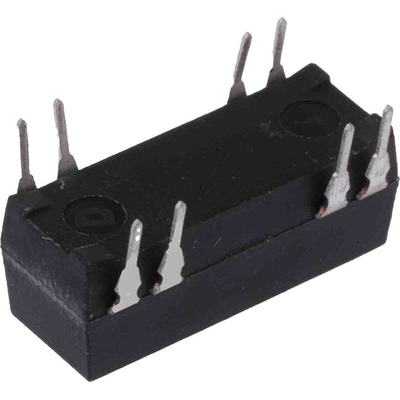

RS PRO PCB Mount Reed Relay, 5V dc Coil, SPST, 200V dc Max, 1 A Max, 500Ω, Реле

SPNO Reed Relay, 1 A, 5 V DC

RS PRO’s single-pole, normally open (SPNO) reed relay is useful where you might need a smaller, faster-acting relay in an electrical circuit. It has a maximum switching current of 1 A AC/DC and a coil voltage of 5 V DC.

This small reed relay features a compact design, low profile and has a mineral-filled casing and copper alloy pins. The relay’s DIP (dual in-line package) housing allows for use on printed circuit boards and the casing is fully sealed. It has a normally open (NO) pole and a coil suppression diode across pins two and six.

These components require lower levels of power to actuate and are frequently used in electronic circuits. RS PRO’s SPNO reed relay is UL (Underwriters Laboratories) approved and meets the organisation's global safety standards.

Features and Benefits

• Reed relay with SPNO contact configuration
• Maximum switching power of 20 W (DC)
• Maximum switching current rating of 1 A (AC/DC)
• Isolation coil to contact of 1.5 kV DC
• Maximum switching voltage of 200 V DC
• Life of 1000000000 electric cycles
• Operating time of 0.5 ms
• PCB mounting type
• Contact resistance of 150 (Static) mΩ and 200 (Dynamic) mΩ
• Operating temperature range of -20°C to +70°C
• Coil power of 50 mW
• Dimensions of 19.3 mm x 6.4 mm x 5.1 mm
• Coil voltage of 5 V DC
• Maximum switching voltage of 200 V AC
• Through-hole terminal
• Coil resistance of 500Ω
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

UL
