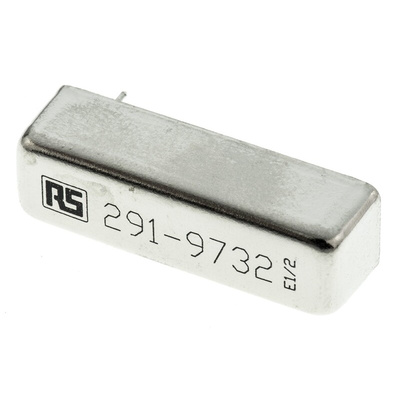

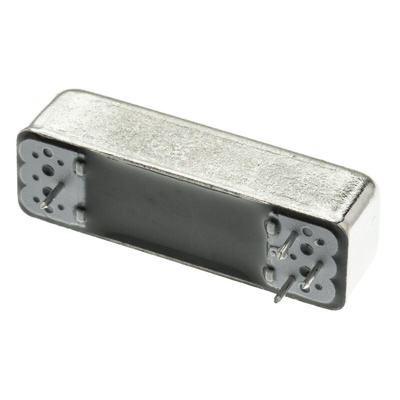

RS PRO PCB Mount Reed Relay, 24V dc Coil, SPST, 200V dc Max, 1 A Max, 7845Ω, Реле

RS PRO SPNO Reed Relay, 1 A, 24 V DC

This reed relay from RS PRO controls reed switches via an electromagnet to regulate the flow of electricity in a circuit. The electromagnetic operation means it's fast-acting and doesn't require an armature to move.
The switch area is hermetically sealed, so no dust or debris can enter it to interfere with its operations. There are also minimal contact areas inside the relay, preventing wear and tear from reducing its effectiveness and extending its lifespan.

Features and Benefits

• Coil power of 73 mW
• Coil resistance of 7.845 kΩ
• Coil voltage of 24 V DC
• SPNO (single pole normally open) contact configuration
• Tin-plated copper alloy contact material
• Contact resistance of 150 mΩ
• Isolation coil to contact of 2 kV DC
• Depth of 9.4 mm
• Height of 8.9 mm
• Length of 31.8 mm
• Life of 100000000 cycles
• Maximum switching current of 1 A AC
• Maximum switching current of 1 A DC
• Maximum switching power of 15 W DC
• Maximum switching voltage of 200 V AC
• Maximum switching voltage of 200 V DC
• PCB (printed circuit board) mounting type
• Operating temperature range of -20°C to +70°C
• Operating time (including bounce) of 0.5 ms
• RoHS (Restriction of Hazardous Substances) compliant
• Through-hole terminal type

Approvals
