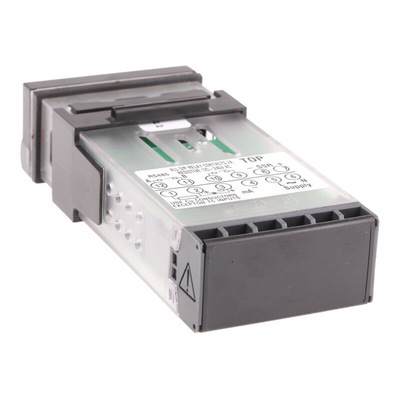

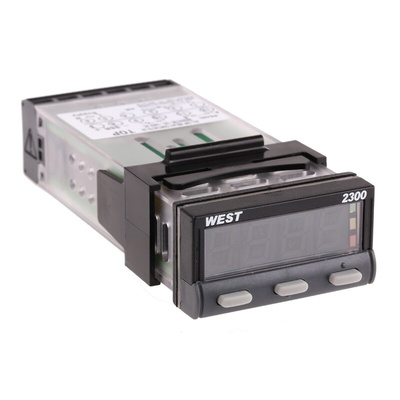

N2300Y1210, West Instruments N2300 PID Temperature Controller, 49 x 25mm, 2 Output Relay, 100 V ac, 240 V ac Supply Voltage ON/OFF, Регулятор температуры

West Instruments Temperature Controller

The West Instruments N2300 series temperature controller has a supply voltage rating ranging from 100VAC to 240VAC. This controller has a width of 25mm and a length of 49mm. The device has up to 2 outputs (relay or solid-state driver) for alarm. It has full 3-wire PT100 inputs. The controller has the largest green digital display and 3 additional multi-colour LEDs to indicate process, alarm and configuration statuses. The large and tactile rubberized keys provide a more practical human interface that is complemented with a specially developed hands-free PID tuning algorithm. It has an easy-tune algorithm that continuously monitors and improves control. Alternatively, the instrument can be manually fine-tuned for a specific application.

Features and Benefits

Accuracy is 0.1%
Hands-free easy tune PID algorithm
Optional second alarm relay (option) or RS-485 communication
PID control for (auto-tuning) hands-free operation with manual override tune capability for specialized applications
Simple straight forward operation for easy setup
solid-state relay SSR for primary control and alarming

Applications

Baking
Curing rubber
Drying/evaporating solvents from painted surfaces
Heat treatment of metals

Certifications

CE certified
E160863
IP20 rated
IP65 rated
IP66 rated
UL approved
