PAXCDL10, Red Lion Plug-in Card For Use With EPAX Display

PAX I - counter, tachometer, with RS232 option

6-digit, 2 independent counters, 1 total/difference/remote indicator, 1 tachometer
Max. 40 kHz, adjustable to all common sensors
Plug-in options: 2 or 4 maximum values, analogue output: 0 / 4 → 20 mA, 0 → 10 V, serial interface: RS 232
Position display with analogue output
Easy to programme on the unit or via PC
Min./max. value storage, scalable pulse output
Protection class IP65
Dimensions: 48 x 96 x 104 mm

Red Lion PAX® Extension Analog Card

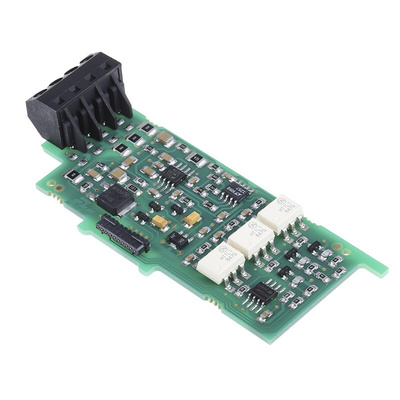

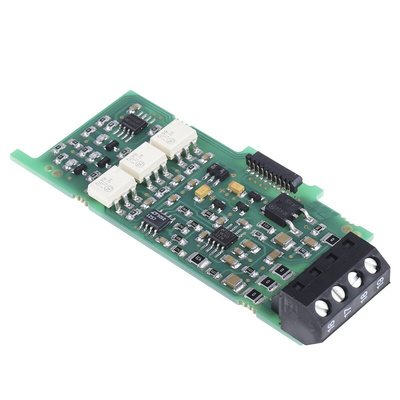

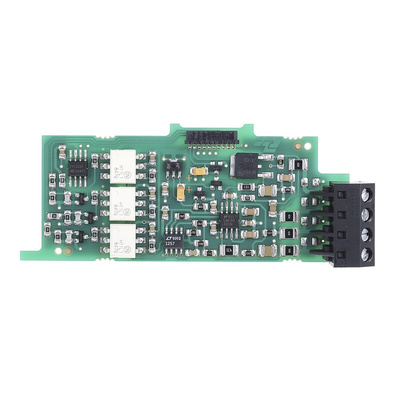

The Red Lion PAXCDL10 series plug-in card is an analogue output card used with EPAX display. The PAX meter can be fitted with up to three option cards such as serial communications, analogue output, and setpoint output. However, only one card from each function category can be installed at a time. The linear DC output plug-in card provides either 20mA or 10V signals. The plug-in setpoint cards provide dual FORM-C relays (5A), quad FORM-A relays (3A), quad sinking, or quad sourcing open collector logic outputs.

Features and Benefits

Terminal block and quick disconnect connector
Resolution is 1/3500
Response time is 10ms
RS232, RS485, Modbus, DeviceNet and Profibus-DP communication interfaces
Readout values and setpoint alarm values can be controlled through the bus

Applications

Use with PAX units

Certifications

cULus approved
CSA Certified
CE certified

PAXCDL-Analog output plug in option card Data Sheet
