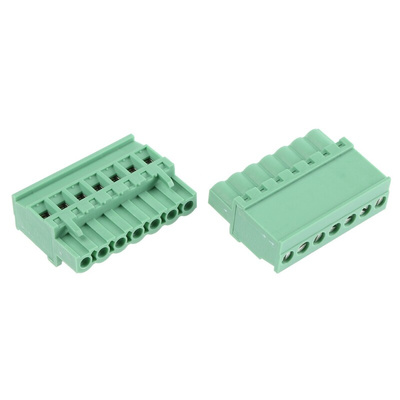

1792294, Phoenix Contact 5.08mm Pitch 7 Way Pluggable Terminal Block, Plug, Cable Mount, Screw Termination

Phoenix Contact CLASSIC COMBICON MVSTBR & MVSTBW 5.08mm Plug-in Terminal Block Connectors

The MVSTBR and MVSTBW series of PCB connectors are from the series 'CLASSIC COMBICON' and feature and 5.08mm pitch and a 0.2mm² to 2.5mm² screw connection terminal. Screw connections provide a strong connection and an easy install and also have a low-temperature rise thanks to the maximum contact force. Rated at 12 A, these PCB connectors will be suitable for most applications and they also have a well-known connection principle that allows you to incorporate these into designs to be used worldwide.

Housings are made from a strong polyamide material with Cu (Copper) alloy contacts.

Features and benefits:

• Universal 5.08mm pitch


• Well known connection principle allows for worldwide use


• Easy screw connection with tension sleeves


• Allows connection of two conductors


• Connectors come in various positions ranging from 2 to 24 way


• Once mated, allows for effortless push-in connection to PCB blocks

Applications:

The MVSTBR and MVSTBW series can be used in the below applications, but are not limited to:

• Control wiring


• Instrumentation


• Control and measurement


• Industrial electronics
