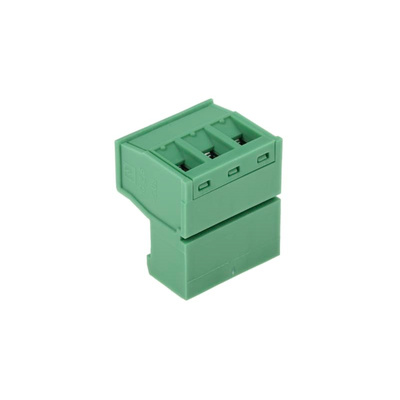

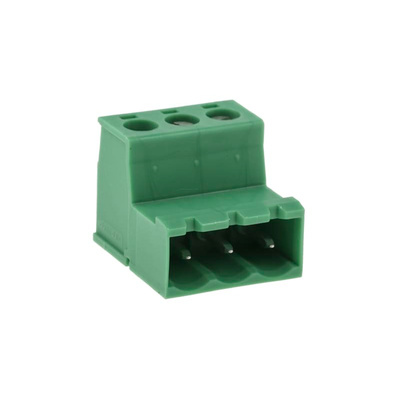

1786187, Phoenix Contact 5.08mm Pitch 3 Way Pluggable Terminal Block, Inverted Plug, Cable Mount, Screw Termination

2929082
Номер производителя: 1786187Производитель: Phoenix Contact
Цена за шт. (норма упаковки 5 шт)
1333.80 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Phoenix Contact CLASSIC COMBICON IC 5.08mm Inverted Plug-in Connectors with Screw Connection

A range of Phoenix Contact CLASSIC COMBICON IC 5.08 mm pitch inverted plug-in connectors with an inverted pin contact system, terminals rated at 12A / 320 V (Class III/2) and 0.2 - 2.5 mm2 screw connections. These PCB connectors can be combined with inverted headers and connectors for shock-proof applications.

Features and Benefits

  • Well known connection principle allows worldwide use

  • Easy PCB replacement thanks to plug-in modules

  • Inverted connector with pin contacts for touch-proof device outputs or free-hanging cable/cable connections

  • Can be combined with the MSTB 2.5 range

  • Maximum contact force means a low temperature rise

Part numbers prefixed with 18253 and 18254 have a screw flange.
Part numbers prefixed with 18254 and 18256 (IC 2.5 - STGF) have a threaded flange for screw connection using MSTB plugs with a screw flange and can become an inline or panel feed-through terminal block with the IDC-DFR assembly frame.

Approvals

UL Recognised, EAC

Phoenix Contact PCB Terminal Block, 5.08mm Pitch, 3 Way - IC 2.5/ 3-ST-5.08 - 1786187

Looking for a safe way to transmit power and data signals in electrical systems? This three-contact terminal block from Phoenix Contact provides a reliable terminal point for cables and ferrules, with pins that let you plug it directly into your PCB (printed circuit board). This component is designed for applications that need regular adjustments – you can easily connect and disconnect it as necessary.
A screw termination method locks the cables in place, while a tension sleeve ensures they don't work loose, even in vibrating systems. Thanks to superior contact force, sparks from partial connections are eliminated, so heat emission is greatly reduced, giving the terminal block a longer service life.
This component is made of robust polyamide, which provides both impact resistance and insulation. You can use it confidently in heavy-duty industrial applications. Its low weight (5.06g) means it is easy to handle and store.

• Tin contact plating for protection and reliable resistance
• Non-fused for flexibility in your setup
• Accepts wire sizes of 24 to 12 AWG (American Wire Gauge) for versatile use
• Underwriters' Laboratories (UL) 94V-0 flammability rating means that burning stops after 10 seconds

Техническая спецификация
pdfDatasheet
Кол-во контактов:
3
Количество рядов:
1
Концевая заделка:
Винт
Материал:
Нейлон
Номинал тока:
12A
Номинальное напряжение:
320 В
Ориентация корпуса:
Прямой
Покрытие контактов:
Олово
Серия:
CLASSIC COMBICON IC
Тип монтажа:
Кабельное крепление
Тип съемного клеммного блока:
Inverted Plug
Цвет:
Зеленый
Шаг:
5.08мм
