1786190, Phoenix Contact 5.08mm Pitch 4 Way Pluggable Terminal Block, Inverted Plug, Cable Mount, Screw Termination

Phoenix Contact CLASSIC COMBICON IC 5.08mm Inverted Plug-in Connectors with Screw Connection

A range of Phoenix Contact CLASSIC COMBICON IC 5.08 mm pitch inverted plug-in connectors with an inverted pin contact system, terminals rated at 12A / 320 V (Class III/2) and 0.2 - 2.5 mm2 screw connections. These PCB connectors can be combined with inverted headers and connectors for shock-proof applications.

Features and Benefits

• Well known connection principle allows worldwide use


• Easy PCB replacement thanks to plug-in modules


• Inverted connector with pin contacts for touch-proof device outputs or free-hanging cable/cable connections


• Can be combined with the MSTB 2.5 range


• Maximum contact force means a low temperature rise

Part numbers prefixed with 18253 and 18254 have a screw flange.
Part numbers prefixed with 18254 and 18256 (IC 2.5 - STGF) have a threaded flange for screw connection using MSTB plugs with a screw flange and can become an inline or panel feed-through terminal block with the IDC-DFR assembly frame.

Approvals

UL Recognised, EAC

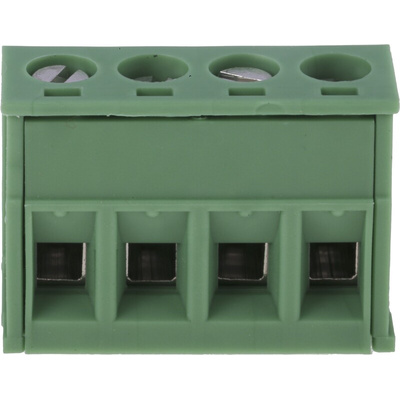

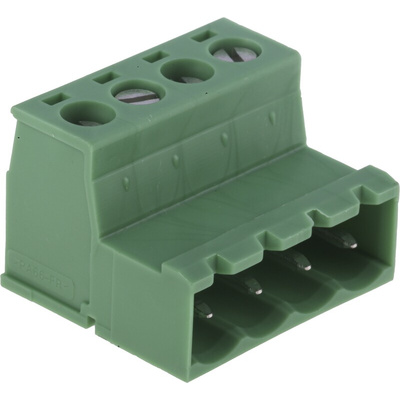

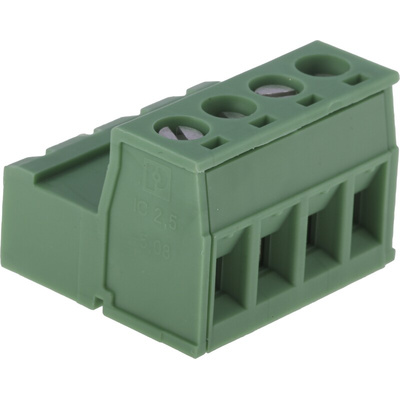

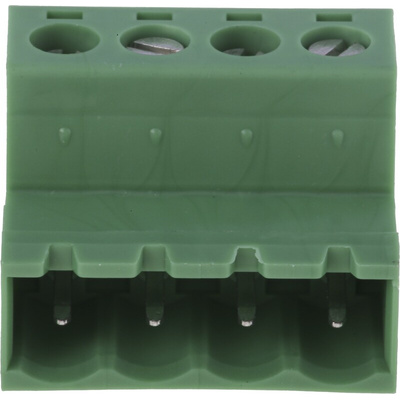

Phoenix Contact PCB Terminal Block, 5.08mm Pitch, 4 Way - IC 2.5/ 4-ST-5.08 - 1786190

Use this terminal block from Phoenix Contact to establish secure connections on your PCBs (printed circuit boards). The versatile unit has four positions and is suitable for linking hanging cables and connectors to your electrical systems.
A robust screw connection is internationally recognised and spring-loaded to make it resistant to vibrations. With a voltage range of 320V and a current rating of 12A, this terminal block is suited to medium-scale applications with more demanding power requirements.
Nylon housing, in Phoenix Contact's signature green, provides heat and impact resistance for safe operation, while tin contacts are highly conductive for seamless data and power transmission. This terminal block also has a surge voltage of 4kV to handle power spikes. Its compact size (21.82mm wide) make it ideal for use in tight spaces.

• Versatile cable mounting method
• Screw-down termination for secure installation
• Accepts standard wire size of 24 to 12AWG (American Wire Gauge)
• 50 pieces per pack, to keep you stocked up
• Weight of 6.74g won't add stress to your system
• UL (Underwriters Laboratories) 94V-0 flammability rating means it is flame-retardant and burning stops within 10 seconds when a fire occurs
