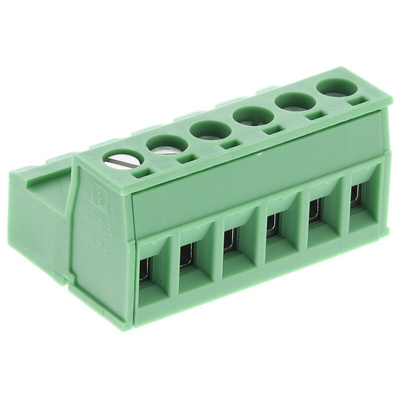

1786213, Phoenix Contact 5.08mm Pitch 6 Way Pluggable Terminal Block, Inverted Plug, Cable Mount, Screw Termination

Phoenix Contact CLASSIC COMBICON IC 5.08mm Inverted Plug-in Connectors with Screw Connection

A range of Phoenix Contact CLASSIC COMBICON IC 5.08 mm pitch inverted plug-in connectors with an inverted pin contact system, terminals rated at 12A / 320 V (Class III/2) and 0.2 - 2.5 mm2 screw connections. These PCB connectors can be combined with inverted headers and connectors for shock-proof applications.

Features and Benefits

• Well known connection principle allows worldwide use


• Easy PCB replacement thanks to plug-in modules


• Inverted connector with pin contacts for touch-proof device outputs or free-hanging cable/cable connections


• Can be combined with the MSTB 2.5 range


• Maximum contact force means a low temperature rise

Part numbers prefixed with 18253 and 18254 have a screw flange.
Part numbers prefixed with 18254 and 18256 (IC 2.5 - STGF) have a threaded flange for screw connection using MSTB plugs with a screw flange and can become an inline or panel feed-through terminal block with the IDC-DFR assembly frame.

Approvals

UL Recognised, EAC

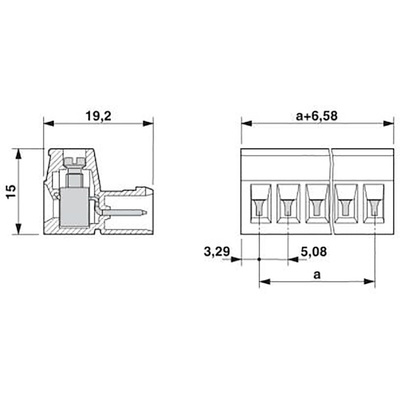

Phoenix Contact PCB Terminal Block, 5.08mm Pitch, 6 Way - IC 2.5/ 6-ST-5.08 - 1786213

This versatile terminal block from Phoenix Contact is ideal for multiple cable termination. Six positions make it a space-efficient solution for your electrical and automation systems, while its convenient plug-in modules let you install and replace it quickly, with no need for special tools. Tin-plated contacts are resistant to corrosion and ensure high conductivity.
This component has a screw-down termination method, so you can secure wires with just a simple screwdriver. It's been rigorously safety tested and has a voltage rating of 320V and a current rating of 12A. This makes it an ideal choice for medium-scale industrial applications such as PLCs (programmable logic circuits) and traffic control systems.
Polyamide housing provides insulation from electric shocks, and a surge voltage rating of 4kV means it can handle power spikes for greater electrical safety.

• Cable mounting type for easy installation
• Wire size of 24 to 12AWG (American Wire Gauge) for standardised systems
• CSA (Canadian Standards Association) certified for safe electrical components
• Approved by IECEx (International Electrotechnical Commission System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres)

Datasheet 1786213
