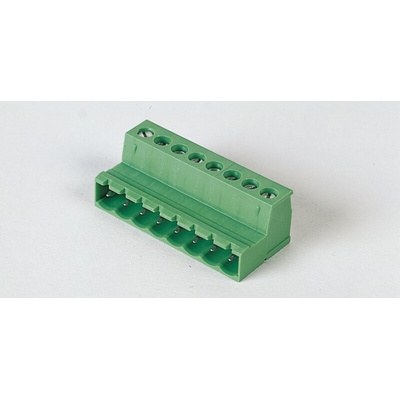

1786226, Phoenix Contact 5.08mm Pitch 7 Way Pluggable Terminal Block, Inverted Plug, Cable Mount, Screw Termination

Phoenix Contact CLASSIC COMBICON IC 5.08mm Inverted Plug-in Connectors with Screw Connection

A range of Phoenix Contact CLASSIC COMBICON IC 5.08 mm pitch inverted plug-in connectors with an inverted pin contact system, terminals rated at 12A / 320 V (Class III/2) and 0.2 - 2.5 mm2 screw connections. These PCB connectors can be combined with inverted headers and connectors for shock-proof applications.

Features and Benefits

• Well known connection principle allows worldwide use


• Easy PCB replacement thanks to plug-in modules


• Inverted connector with pin contacts for touch-proof device outputs or free-hanging cable/cable connections


• Can be combined with the MSTB 2.5 range


• Maximum contact force means a low temperature rise

Part numbers prefixed with 18253 and 18254 have a screw flange.
Part numbers prefixed with 18254 and 18256 (IC 2.5 - STGF) have a threaded flange for screw connection using MSTB plugs with a screw flange and can become an inline or panel feed-through terminal block with the IDC-DFR assembly frame.

Approvals

UL Recognised, EAC
