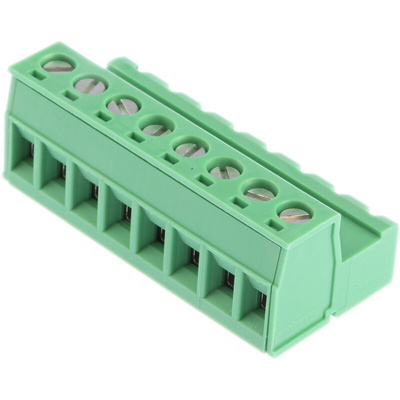

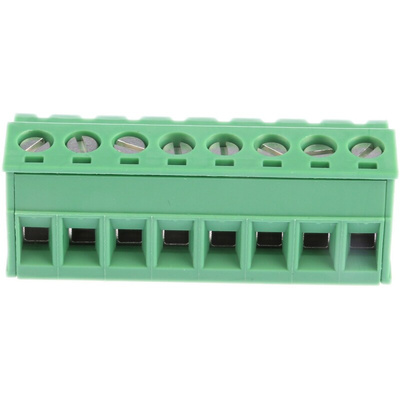

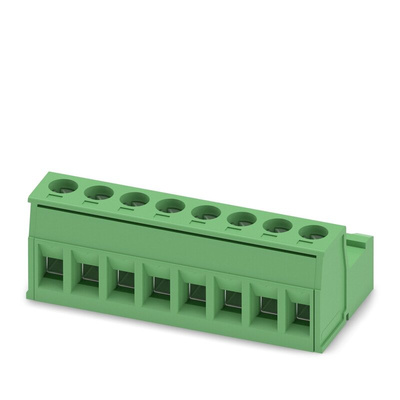

1786239, Phoenix Contact 5.08mm Pitch 8 Way Pluggable Terminal Block, Inverted Plug, Cable Mount, Screw Termination

Phoenix Contact Pluggable Terminal Block, Polarised, 12A Current Rating - IC 2,5/ 8-ST-5,08 - 1786239

Looking for a snappy connector for your board-mounted devices? This pluggable terminal block from Phoenix Contact is up to the task. Plug-in connectivity means it slides together with a header (292-9240) to make quick work of system set-up. As this is an inverted model, it protects its contacts with two housing layers to achieve touch-proof connections. Handy screw terminals keep your fingers clear of wiring during installation. Thanks to the unit's polarised body, it only connects when lined up accurately to ensure proper mating every time.
Sudden movements are no match for this block, as its tension sleeves clamp down on conductors to keep them in place. Tin-plated copper pins resist corrosion to ensure connections stay reliable in the long term. With its insulating PA body, this module stops electrical surges from crossing between circuits to cut the risk of equipment damage.

Features & Benefits

• Carries current up to 12A to handle demanding power connections
• Straight cable entry orientation for easy mounting
• Tested to IEC 60999-1 standard to minimise the risk of conductor damage on pull-out
• ISO 6988-approved, indicating reliable performance in harsh industrial environments
• 5.08mm pitch for easy compatibility

Datasheet 1786239

Line Drawing - 1786239
