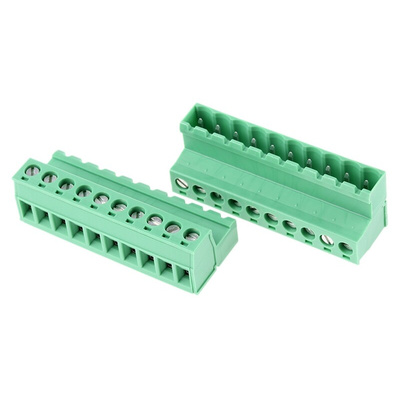

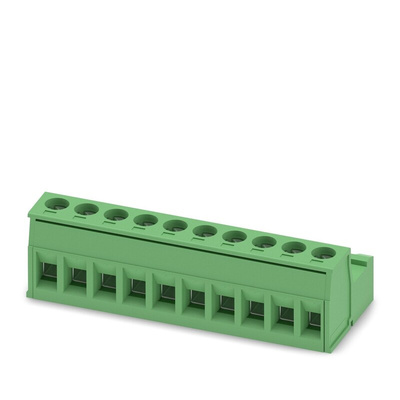

1786255, Phoenix Contact 5.08mm Pitch 10 Way Pluggable Terminal Block, Inverted Plug, Cable Mount, Screw Termination

Phoenix Contact Pluggable Terminal Block, Single Row, 12A Current Rating - IC 2,5/10-ST-5,08 - 1786255

Want to make wired PCB connections that are easy to swap? Add this pluggable terminal block from Phoenix Contact to your setup. It makes termination a breeze, as there's no need to solder your cables. Simply plug in your wires to the inverted head and secure the screws to get up and running in a jiffy. A 5.08mm pitch gives you plenty of room to manoeuvre when attaching an array of cable sizes, for versatile use.
You can trust the block is built to last, as it delivers a long service life of up to 25 insertion and withdrawal cycles. You're protected from hazardous electrical faults, thanks to the 4kV rated surge voltage. As it has an operating temperature range between -40°C and +100°C, this is an ideal option for extreme industrial conditions.

Features & Benefits

• 10 contacts to run multiple circuits simultaneously, boosting productivity and streamlining your setup
• Compact dimensions of 52.3 (W) x 15 (H) x 19.2mm (L) make it space-efficient
• PA material provides effective electrical insulation
• Tin-plated copper-alloy contacts offer a high level of conductivity for reliable performance

Datasheet

Line Drawing - 1786255
