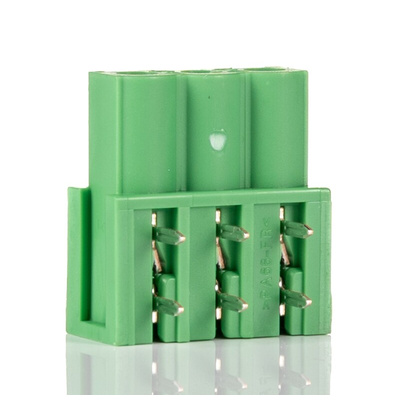

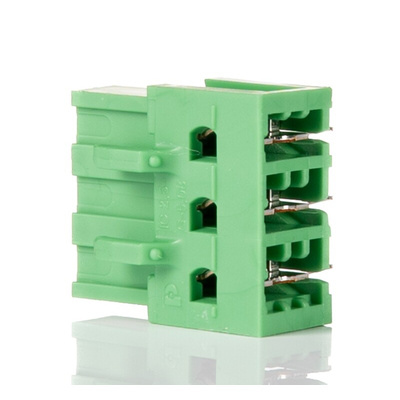

1786417, Phoenix Contact 5.08mm Pitch 3 Way Right Angle Pluggable Terminal Block, Inverted Header, Through Hole, Solder

2929199
Номер производителя: 1786417Производитель: Phoenix Contact
Цена за шт. (норма упаковки 5 шт)
873.60 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Phoenix Contact CLASSIC COMBICON IC & ICV 5.08mm Inverted Headers

CLASSIC COMBICON IC & ICV 5.08mm pitch inverted PCB though hole mount terminal block headers rated at 12A / 250V (Class III), 630V (Class II). These CLASSIC COMBICON IC inverted pluggable terminal block headers provide a clear separation of PCB inputs/outputs and can be used with the MSTB 2,5 headers for a primary/secondary PCB connection.
Part numbers prefixed with 17864 (IC) and 17865 (IC) are right angle mount
Part numbers prefixed with 17859 (ICV) and 17860 (ICV) are vertical mount
Part numbers prefixed with 18251 (IC) are right angle mount with a threaded flange
For marker cards see stock numbers 437-3598, 804-0961 and 437-3605

Phoenix Contact PCB Header, 5.08mm Pitch, Solder Terminals - IC 2,5/ 3-G-5,08 - 1786417

Need to hook up multiple electrical connections? Take a load off by using this wire-to-board PCB header from Phoenix Contact. It lets you connect up to three wires in a snap and offers a durable housing for your conductors.
The unit's contact surface and precise geometry are designed to deliver an extended service life in control cabinets. As its housing is made from corrosion-resistant PA, you can rely on its performance in humid environments. This material also provides insulation, so you're protected against electric shocks.
A pitch of just 5.08mm helps you make maximum use of your circuit board packing area and its solder pins achieve a secure connection. This versatile PCB header is well-suited to use in the automotive and electronics manufacturing industries.

Features & Benefits

• Up to 25 insertion and withdrawal cycles, making it re-usable
• Meets IEC 60512-15-1:2008-05 standards for connectors used in electronic equipment
• Convenient coding system to protect against incorrect connection
• Rated surge voltage of 4kV, so helps to prevent power spikes causing damage to equipment
• Resists vibration, for use in harsh industrial environments

Техническая спецификация
pdf1785955 Header Data Sheet
Кол-во контактов:
3
Количество рядов:
1
Концевая заделка:
Припой
Материал контактов:
Медный сплав
Номинал тока:
12.0A
Номинальное напряжение:
320.0 V
Ориентация корпуса:
Правый угол
Покрытие контактов:
Олово
Серия:
IC 2.5/ 3-G-5.08
Тип монтажа:
Сквозное отверстие
Тип съемного клеммного блока:
Inverted Header
Шаг:
5.08мм
