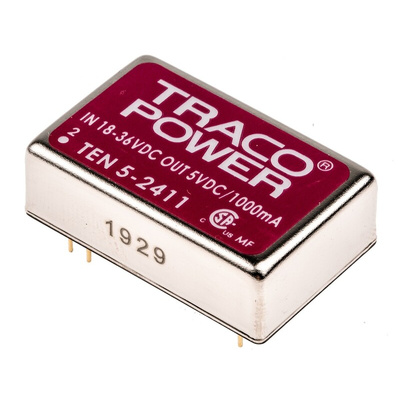

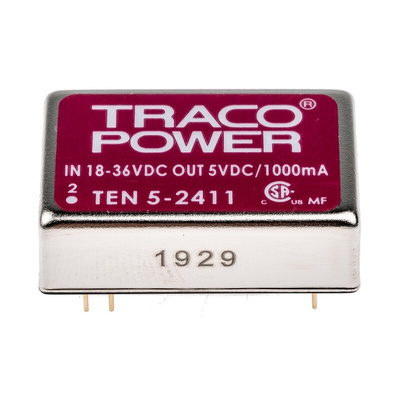

TEN 5-2411, TRACOPOWER TEN 5 DC-DC Converter, 5V dc/ 1A Output, 18 → 36 V dc Input, 5W, PCB Mount, +85°C Max Temp -40°C Min, Преобразователь

Traco 3.96 to 6W DIP Single/Dual Output Regulated Isolated DC-DC Converter - TEN 5 Series

The Traco Power TEN 5 series is a range of isolated, 5 Watt, DC-DC converters in a DIP-24 package with industry-standard footprint. With their high efficiency these regulated converters allows an operating temperature range of -40°C to +75°C. The full SMD design of these DC-DC converters guarantees high reliability. The TEN 5 series comes with built-in EMI input filter and complies with EN 55022 and FCC, level A without external components. Ideal applications of these DC-DC converters are in battery operated equipment, industrial process control systems, tele-data communication and any other application requiring very wide operating voltage range.

Wide 2:1 input range
Full SMD-design
High efficiency up to 86%
Extended operating temperature range –40°C to 85°C
I/O isolation 1500 VDC
Indefinite short circuit protection
Input filter to meet EN 55022, Class A and FCC, level A without external components

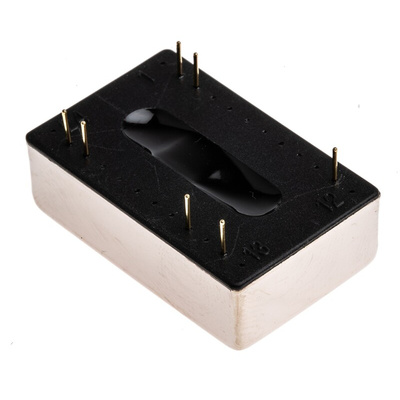

Shielded metal case with insulated baseplate
24-pin DIP with industry standard pinout
High reliability, MTBF >1 Mio. h

Standards

UL 60950-1, IEC/EN 60950-1

Approvals

CSA File No. 226037

Traco Power DC-DC Converter, 75mV pk-pk Maximum Output Ripple and Noise, Single Output - TEN 5 Series - TEN 5-2411

Need to be sure your electronic device receives the right power supply? Trust the job to this DC-DC converter from Traco Power. It steps down an input voltage range from 18 to 36V DC and delivers a safe output level of 5V DC. The unit also serves as an isolating barrier between the input and output sources to prevent short circuits. As it's housed in a metal case with an insulated baseplate that delivers protection from electric shock, you can rest assured that you're in safe hands when handling this device.

Features & Benefits

• Built-in reverse voltage protection prevents damage from faulty currents
• Industry-standard pinout easily fits into existing boards
• Maximum output ripple and noise of 75mV pk-pk for minimal electrical disturbance

Applications

• Electric motors
• Consumer electronics
• Manufacturing industry
• Portable chargers

How efficient is this converter?

As this converter has an efficiency rating of 83%, you can trust it releases minimal heat waste, eliminating the need for you to add a heatsink to your PCB.

How accurate is this converter?

A voltage set accuracy of ±1.0% means there are minimal errors with this converter.

Approvals

EN60950; UL1950
