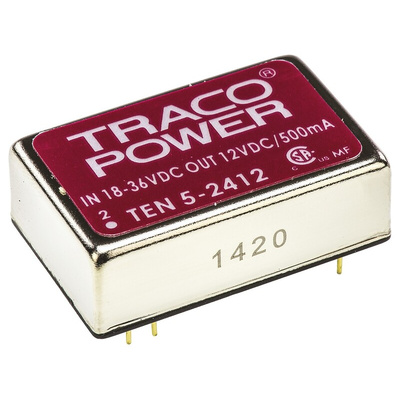

TEN 5-2412, TRACOPOWER TEN 5 DC-DC Converter, 12V dc/ 500mA Output, 18 → 36 V dc Input, 6W, Through Hole, +85°C Max Temp, Преобразователь

Traco Power DC-DC Converter, ±1% Load Regulation, 86% Efficiency - TEN 5 Series - TEN 5-2412

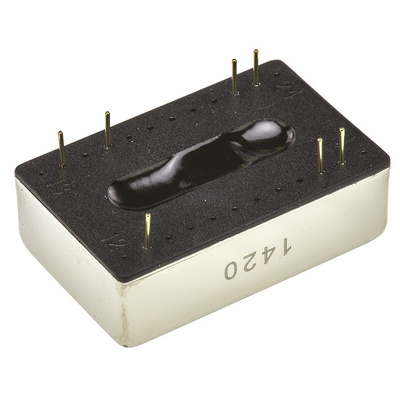

Searching for an efficient way to manage your power inputs? Take charge with this DC-DC converter from Traco Power. It accepts a wide input voltage range between 18 and 36V DC, converting them into a steady 12V DC output. The unit operates at up to 86% efficiency at full load, so it wastes minimal energy as heat to keep your setup cool. A DIP-24 format and industry-standard pinouts make installation a breeze, while through-hole mounting ensures a stable and strong connection throughout mechanical vibrations.

Features & Benefits

• Short-circuit and overload protection guard against damaging voltage spikes and surges
• EMI input filter keeps interference from disrupting your signals
• 1.5kV DC isolation voltage puts up a barrier between input and output for safer use
• Suitable for harsh environments, thanks to a wide operating temperature range of -40°C to +85°C
• Light weight of just 16.9g means it won't put strain on your system

Applications

• Battery operated electronics
• Industrial process control systems
• Data communication networks

What size is this DC-DC converter?

This unit is compact enough to fit where space is limited, with 31.8 (L) x 20.3 (W) x 10.2mm (D) dimensions.

Approvals

EN60950; UL1950

Datasheet

Industrial Power Solutions Catalogue

Selection Guide
