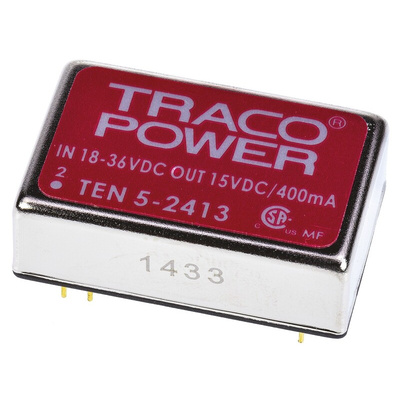

TEN 5-2413, TRACOPOWER DC-DC Converter, 15V dc/ 400mA Output, 18 → 36 V dc Input, 6W, Through Hole, +85°C Max Temp -40°C Min, Преобразователь

Traco Power DC-DC Converter, 15V DC Output Voltage Rating, 86% Efficiency - TEN 5 Series - TEN 5-2413

Keep voltage levels in check with this DC-DC converter from Traco Power. It handles a wide input range between 18 and 36V DC, steeping it down to a smooth and steady 15V DC. The unit's shielded casing curbs electromagnetic interference, so you can be sure of reliable signal transmission. Installation is a breeze – just punch the unit's pins through the holes on your PCB and secure them. A 1.5kV DC input/output isolation enhances safety, reduces electrical noise and prevents ground loops, which improves overall system stability and boosts performance.

• 86% efficiency prevents heat build-up and minimises energy waste
• 24-pin DIP with industry-standard pinout simplifies installation
• Wide operating temperature range between -40°C and +80°C for use in harsh conditions

Applications

• Consumer electronics
• Telecommunications systems
• Industrial process control

How big is this DC-DC converter?

At 32 (L) x 20 (W) x 10mm (D), it's a small component that easily fits into busy enclosures.

Does this device have integrated electrical protection?

Yes, it features built-in short-circuit protection to help limit damage and service interruptions.

Approvals

EN60950; UL1950
