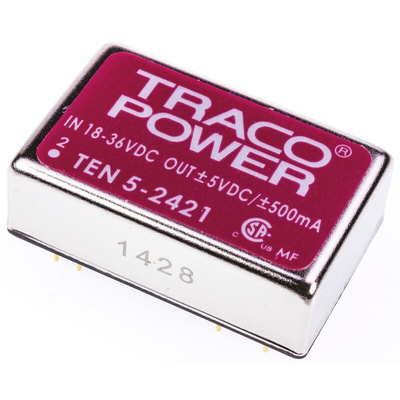

TEN 5-2421, TRACOPOWER TEN 5 DC-DC Converter, ±5V dc/ ±500mA Output, 18 → 36 V dc Input, 6W, Through Hole, +85°C Max Temp, Преобразователь

Traco Power DC-DC Converter, 1.5kV DC Isolation, 83% Efficiency - TEN 5 Series - TEN 5-2421

In the market for a dual-output PSU module? Try this DC-DC converter from Traco Power. It takes an input voltage between 18 and 36V DC and steps it down to a stable ±5V DC that's just what you need for charging battery-boosted components. As an adaptable two-output model, this product can supply up to two bits of connected kit with power. Thanks to its input filter, you can expect low ripple and noise levels of typically 50mVpk-pk, as well as minimal risk of disruption from EMI.

Features & Benefits

• 0.3% line regulation and 2% load regulation means you get close control over input and output values
• Isolation to 1.5kV DC, so you and your equipment are shielded against electrical surges
• Works in up to 95% relative humidity, so does the job in damp environments
• Short-circuit protection with automatic recovery protects users and devices against common current faults

Applications

• Telecommunications networks
• Mechanical engineering
• Production lines

How efficient is this converter?

This converter has an impressive 83% efficiency rating, so it creates very little waste heat. This means it doesn't need a fan or heatsink to keep cool across a broad range of temperatures from -40°C to +85°C.

Approvals

EN60950; UL1950
