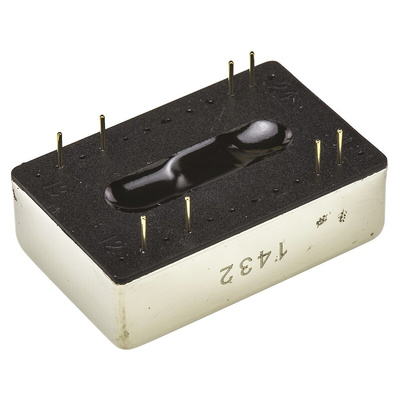

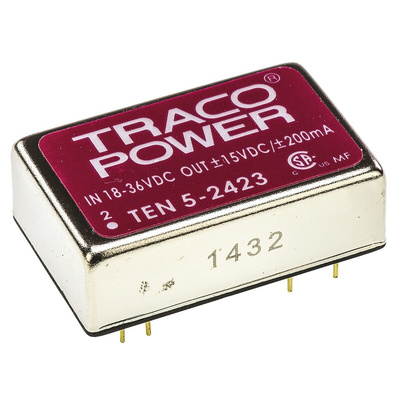

TEN 5-2423, TRACOPOWER TEN 5 DC-DC Converter, ±15V dc/ ±200mA Output, 18 → 36 V dc Input, 6W, Through Hole, +85°C Max Temp, Преобразователь

Traco Power DC-DC Converter, 15V DC Output Voltage, 1.5kV DC Isolation Voltage - TEN 5 Series - TEN 5-2423

Keep your voltage on an even keel with this DC-DC converter from Traco Power. It accepts a broad input range between 18 and 36V DC and outputs a reliable 15V DC, so it's versatile and suitable for low-voltage setups. The 1.5kV DC input/output isolation bolsters safety and enhances overall system reliability by minimising electrical noise and cutting the risk of ground loops. Integrated short-circuit protection is on hand to safeguard against electrical faults and resulting system standstills.

• Broad operating temperature range between -40°C and +85°C for use in demanding conditions
• Small device measuring 32 (L) x 20 (W) x 10mm (D) saves space in your setup
• 24-pin DIP with an industry-standard pinout for easy integration

Applications

• Media centres
• Gaming consoles
• Telecommunications networks
• Medical equipment
• Testing and measuring instruments

Is this DC-DC converter a fire-safe choice?

Yes. A UL94 V-0 rating indicates that the housing self-extinguishes in 10 seconds, which means it's a fire-safe component.

How efficient is this unit?

It has an 86% efficiency rating, which indicates it wastes little energy as heat, so runs cool.

Approvals

EN60950; UL1950
