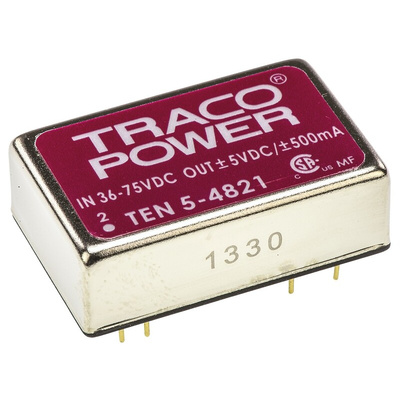

TEN 5-4821, TRACOPOWER TEN 5 DC-DC Converter, ±5V dc/ ±500mA Output, 36 → 72 V dc Input, 6W, Through Hole, +85°C Max Temp, Преобразователь

Traco Power DC-DC Converter, 1500V DC Isolation Voltage, Insulated Baseplate - TEN 5 Series - TEN 5-4821

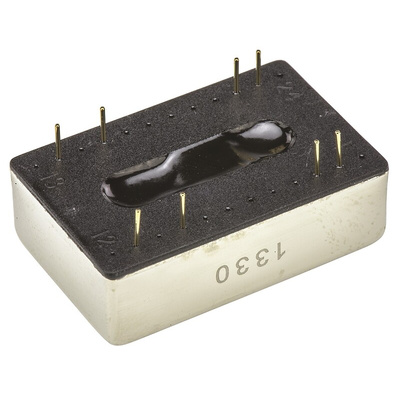

Take an input anywhere in the range of 36 to 72V DC and get a stable ±5V DC supply with this DC-DC converter from Traco Power. It runs at 83% efficiency, so you can trust minimal energy is wasted as heat. Load regulation of ±5% makes sure your appliances receive a steady and reliable voltage – even when the power requirements of the load fluctuate. It's housed in an industry-standard DIP-24 unit with a shielded metal case protecting against EMI. An insulated baseplate guards against short circuits or electric shocks, for user and equipment safety.

Features & Benefits

• Isolation voltage of 1500V DC protects downstream components from power spikes on the supply side
• Operating temperature range of -40°C to +85°C makes it suitable for use in harsh environments
• Through-hole mounting ensures a robust connection with the board

Applications

• Mobile battery-powered systems
• Telecommunication networks
• Factory automation

What short-circuit protection does this DC-DC converter offer?

The device offers indefinite short-circuit protection with automatic recovery, meaning it monitors the circuit continuously. If it detects a glitch, it will limit the current or temporarily shut down to prevent damage, before restarting when the fault is clear.

Approvals

EN60950; UL1950
