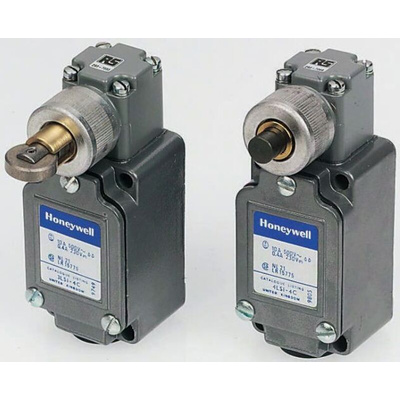

4LS1-4C, Honeywell Plunger Limit Switch, NO/NC, IP67, SPDT, Die Cast Zinc Housing, 480V ac Max, 10A Max

Side Actuation

Two switches for specific applications where the switch can only be mounted in the same plane as the target to be sensed, in side roller and side roller plunger versions. The side roller plunger may also be rotated through 360° allowing the target to pass the switch at any angle.

Suitable for most industrial applications
Bifurcated contacts for switching wide current and voltage requirements
Galvanically isolated contacts for switching different polarities between circuits
Conformity to EN 50947-5-1 (IEC 947-5-1) safety switches with forced disconnect mechanism-independently tested
Sealed up to IP67 independently tested

Standards

EN60947-5-1, IEC947-5-1, AC15, A300 or A600 , DC13, Q300

Approvals

UL; CSA

Datasheet
