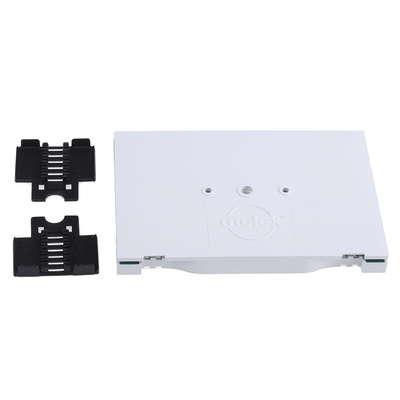

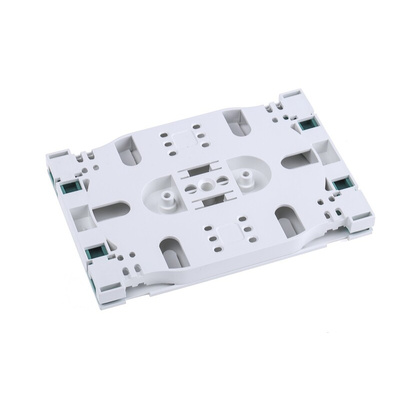

91.A1150, Molex Premise Networks 91Series, 12 Port Tray

Fusion Splice Tray

A 12 position splice tray which fits neatly into fibre patch panels for the management of incoming fibres. The tray has four cable grips, one in each corner, which will retain incoming cables. There are two 6-way snap-in sleeve holders, which hold fusion splice sleeves.,Fibres are held in loops within the tray providing protection and easy servicing. Assembly instructions included.

Molex Splice Tray, 143mm Length, 95mm Width - 91.A1150

Securely tidy away your fibre optic cable connections with this splice tray from Molex. You can use it to hold up to 12 fusion splices, thanks to the two sleeves provided. Once you've inserted the splices, all you need to do is place the sleeves in the tray, pop the cover on and fix the unit inside your patch panel. As it tips the scales at just 99g, this is a lightweight organiser.

Features & Benefits

• Adjustable grips in each corner hold incoming cables securely in place
• Moulded ABS construction for strength and durability
• Universal design also suits mechanical splices using a compatible separate sleeve

Applications

• Communication networks
• Data centres
• Robotics manufacturing

How big is this splice tray?

The tray has compact dimensions of 95 (W) x 143 (H) x 13mm (D) to help you organise your splices efficiently in tight spaces.

91.A1150 Universal Splice Tray Data Sheet
