78628224 T0-3-15433/E/EZ-P1, Eaton, 3P 3 Position 45° Changeover Cam Switch, 690V ac, 20A, Toggle Actuator, Поворотный переключатель

Eaton Rotary Cam Switches - T0 Series

The T0 series of rotary cam switches and switch disconnectors from Eaton are compact and robust. Rotary Cam Switches can be used for many switching and control applications, for example as ON-OFF, main, main/control, or instrument switches. The device consists of a hand actuator, the switch unit and the mounting accessories. This range of cam switches is also suitable for use in applications where there is a need to manually power down and disconnect electrical equipment for servicing and maintenance by cutting the power supply to isolated parts of the circuit. These cam switches can also be used as safety switches.

With an IP65 degree of protection, the devices are suited to hard-wearing industrial environments with a rated uninterrupted current of up to 20 A. Available in four different mounting options (surface mount, flush-mount, rear mount, and service distribution board mount). These cam switches can be selected in a multitude of contact sequence configurations.

This professional range of cam switches offers corrosion resistance, weather sustainability, insulating material resistance to normal heat and fire due to internal electric effects and more. It comes with various advantages including high reliability, high adaptability, low power usage and makes the product efficient in its performance.

Features and Benefits

• Emergency stop provision
• Flexibility in application design
• Variety of mounting options
• Option of either 2, 4, 6 or 8 auxiliary contacts
• 45, 60 or 90° switching angle
• High precision
• Long mechanical lifespan
• Low power consumption
• Multipole and multi position (up to 4 positions for bespoke switching operations)
• Performs local isolation, manual override & safety switch functions
• T0 Series fit a standard front plate of 45 x 45 mm
• For spare rotary thumb stick (black) see stock no. 176-9759

Applications

• Branch circuits
• Circuit breaker control panel switch
• Electric engineering
• Industrial automation
• Low-voltage cam switch technology
• Motor disconnect applications
• Off-load switch
• Change-over switch
• Process control engineering

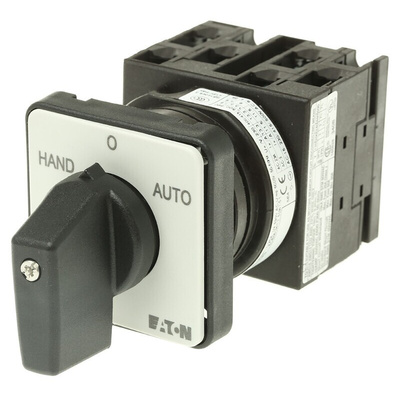

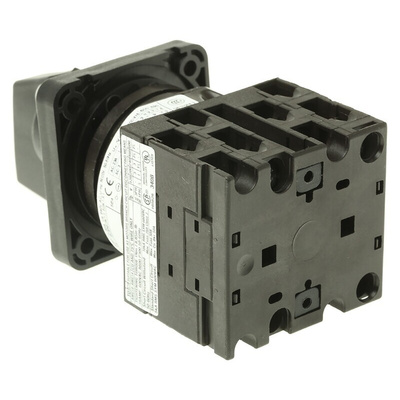

Eaton Changeover Switch With Toggle Actuator, 3 Positions, 20A - T0 Series - 78628224 T0-3-15433/E/EZ-P1

Use this changeover switch from Eaton to manually switch an electrical load between two sources. The switch allows you to run your equipment on an alternative power source in the event of an outage, ensuring minimal downtime. It's simple to use thanks to its thumb grip, which allows you to easily toggle between the switch's three positions. Screw terminals ensure a secure connection that's resistant to vibrations for improved reliability. Choose this switch for low-voltage electrical engineering, automation and process control applications.

• Supplied with actuator and mounting accessories for convenient installation
• IP65 (ingress protection) rating for complete protection against low-pressure water jets and dust
• Compact dimensions of 48 (length) x 48 (width) x 100mm (depth) to save space
• Broad operating temperature range of -25°C to +50°C when open and -25°C to +40°C when enclosed for use in a variety of demanding environments

How long will this switch last?

Thanks to its robust mechanical lifespan of more than 4 million operations, you can rest assured that this device will last a long time.

Note

Eaton formerly known as Moeller
