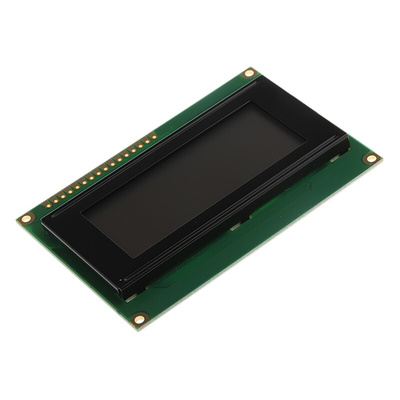

Powertip PC1604ARSA Alphanumeric LCD Display, 4 Rows by 16 Characters, Reflective, Дисплей

Powertip Reflective LCD TN / STN

Reflective alphanumeric TN and STN dot matrix modules with integral LCD display drivers utilising a 5´7 dot matrix format (except 20´4 which uses 5´8) with cursor.

160 characters and symbols
Supertwist (STN) modules give 100% improvement in contrast ratio and viewing angle compared to the Twisted Nematic (TN) type
CMOS controller and driver
Parallel Interface to 4 or 8 bit microprocessor
Display commands: clear, shift, on/off, read, write
Cursor commands: home, on/off, shift, set direction
Operating temperature range 0°C to +50°C

* All modules operate on +5V.d.c. which can be obtained by using voltage converter stock no. 651-490, in the semiconductors - power supply and control section.

Note

Reverse polarity connection to the module will cause irreparable damage.

Caution

Observe ANTI-STATIC precautions when storing or handling these LCD modules.

Powertip Alphanumeric LCD Displays

Datasheet
