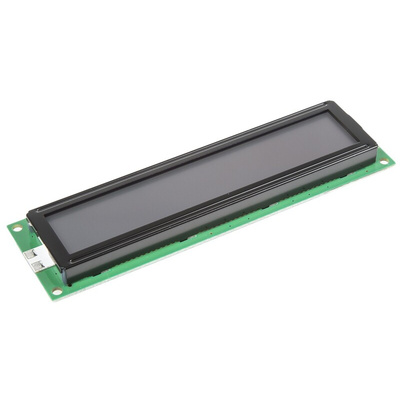

Powertip PC2002LRSL Alphanumeric LCD Display, 2 Rows by 20 Characters, Transflective, Дисплей

Powertip Transflective backlit LCD STN

Transflective (dark character on a light background) alphanumeric STN and TN dot matrix modules with integral green LED backlight and LCD display drivers

5´7 dot matrix format (except 16´1, which uses 5´10, and 20´4 and 40´4, which use 5´8) with cursor
160 characters and symbols
Wide viewing angle
Single +5V supply
CMOS controller and driver
Parallel interface to 4 or 8-bit microprocessor
Display commands: clear, shift, on/off, read, write
Cursor commands: home, address set
Operating temperature range 0°C to 50°C

Note

Reverse polarity connection to the module will cause irreparable damage.

Caution

Observe ANTISTATIC precautions when storing or handling these modules.

Powertip Alphanumeric LCD Displays
