78628229 T0-5-8270/E/EZ-P1, Eaton, 3P 3 Position 45° Multi Step Cam Switch, 690V ac, 20A, Rotary Actuator, Поворотный переключатель

Switches-22mm Single Hole or Standard Three-hole Flush Mounting

Black thumb-grip handle and silver escutcheon plate
Conform to IEC947/EN 60947
Maximum panel thickness 5mm
48 x 48mm switch front plate
Finger-proof terminals
IP65 for flush mounting three- hole mounting and IP55 for 22.5mm hole mounting (supplied with adaptor for single 22.5mm hole mounting)
Operating current: 20A
Operating temperature: –25 to +50°C

Approvals

UL, CSA

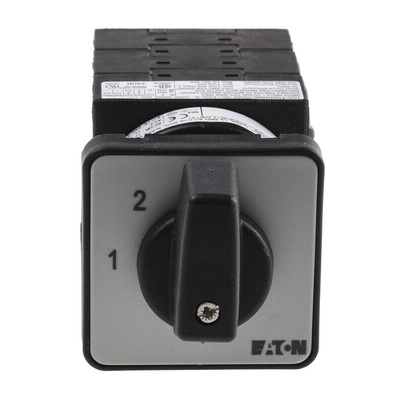

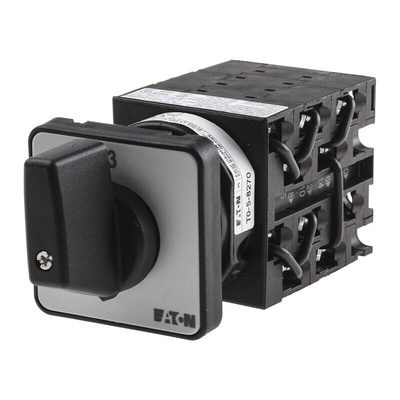

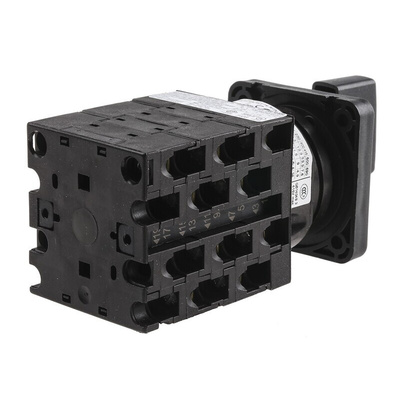

Eaton Rotary Switch, 690V AC Maximum Voltage, 20A Maximum Current - 78628229 T0-5-8270/E/EZ-P1

Use this black and silver rotary switch from Eaton to control connections in your electrical system. Its 3-pole configuration let you switch between up to three connections with a 45° throw, so it’s ideal for automated processing applications. A maximum voltage of 690V AC and maximum current of 20A make the switch suitable for high-powered systems. Its compact dimensions of 48 (H) x 48mm (W) mean it’s useful in settings where space is limited.

• Maximum operating frequency of 1,200 operations per hour for constant heavy-duty use
• Black thumb-grip handle is comfortable to use
• Silver escutcheon plate is durable and resistant to corrosion
• Finger and back-of-hand-proofing prevents accidental actuation
• M3.5 terminal screws are included, making it easy to flush-mount

Will this rotary switch work in harsh conditions?

Yes, this rotary switch has an operating temperature range of -25°C to +50°C so it’s suitable for use in demanding settings. When flush-mounted using three screws, this switch has an IP65 rating, which means it's completely shielded from dust and can withstand low-pressure water jets from all directions.

Note

Eaton formerly known as Moeller
