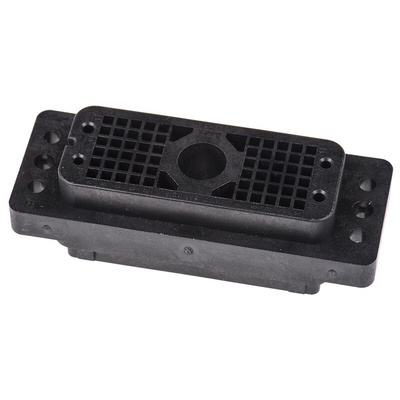

086-0032-000, ITT Cannon, DL Heavy Duty Power Connector, Female, Straight, 60 Way, Разъем

High Density Connector

Brought to you by ITT Cannon, this DL series of high density connectors are zero insertion force (ZIF). The DL series connectors will mate and lock together using the appropriate actuating handle fitted to the cam shaft in the plug body. This makes them ideal for quick and durable mating in multi-wire power and signal applications where high performance is a must.

Features and Benefits:
• Polarising key ensures correct orientation
• Any number of contacts can be loaded into individual cavities, up to the maximum stated
• Moulded alpha numeric cavity grid reference
• Panel mounting holes accept back shells and polarising pillars

ITT DL Range

The DL range of zero insertion force (ZIF) multi-pole connectors, with high contact densities is commonly used on diagnostic and test and instrumentation equipment in medical, computer, audio, broadcast and avionics industries.

High pin counts - 60, 96, 156, 260 and 360 way
Long life - 10000 mating cycles
Cam actuated zero insertion force coupling
Backshell/strain relief and polarisation options
Metal and plastic plug and socket bodies
Metal products have excellent shielding properties
Standard and low current contacts available
