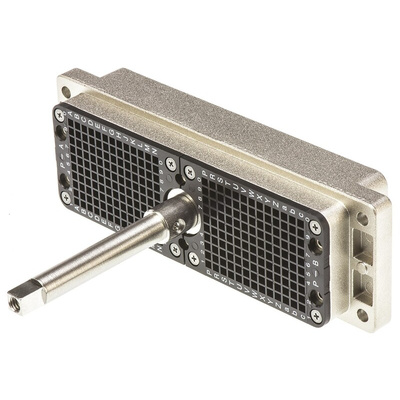

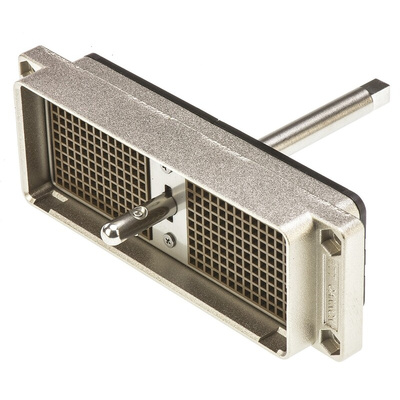

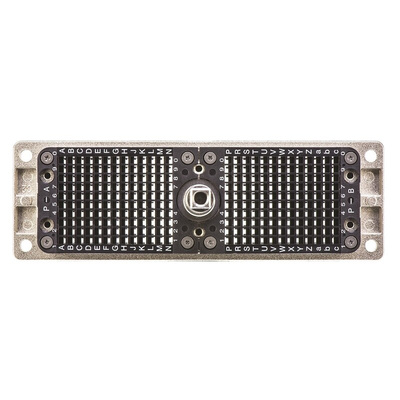

ITT Cannon ZIP Connector Plug
The ITT Cannon DLM series 260-way ZIP connector plug uses a rugged nickel-plated aluminium housing. It has 260 contacts and a shield locking mechanism feature, which ensures uniform mating pressure around the perimeter of the mated connector to create an EMI/RFI shield. This contact is made of beryllium copper with gold plating.
Features and Benefits
Back shell/strain relief and polarisation options
Current rating is 5A
Voltage rating is 1.2kVAC
Cam actuated zero insertion force coupling
Mounting type is panel mount
Operating temperature ranges between -55°C and 105°C
Termination type is crimp
Applications
Broadcast and avionics industry
Computers
Instrumentation equipment in medical field
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
