030-2409-003, ITT Cannon, MS Male Crimp Circular Connector Contact for use with ZIF Connectors, Wire size 22 → 20 AWG, Контакты разъема

2953603
Номер производителя: 030-2409-003Производитель: ITT Cannon
Цена за шт. (норма упаковки 10 шт)
288.00 руб. (С НДС) *
Количество 10+ 200+ 400+
Цена 288.00 руб. 261.00 руб. 234.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

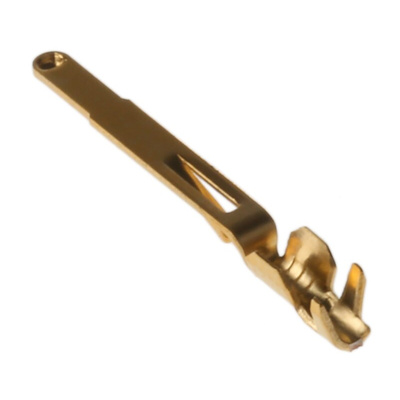

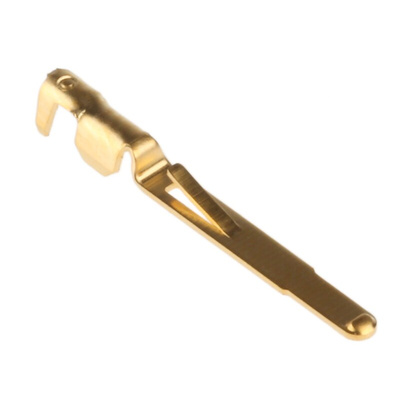

ITT Cannon Crimp Contact

The ITT Cannon MS series male socket contact has size 20 and wire size is 22AWG. This contact is made of copper alloy and has 50μin gold bump over nickel plating. It can be used with the ZIF connectors.
Low current:
0.5μin gold-plated beryllium copper contacts for plug and socket bodies
For high speed digital and low current work i.e. 'dry circuit' less than 100mA
Design minimises contamination build-up
Note:
This connector is non-gendered
ITT DL range
The DL range of zero insertion force (ZIF) multi-pole connectors, with high contact densities are commonly used on diagnostic and test and instrumentation equipment in medical, computer, audio, broadcast and avionics industries.
High pin counts - 60, 96, 156, 260 and 360 way
Long life - 10000 mating cycles
Cam actuated zero insertion force coupling
Backshell/strain relief and polarisation options
Metal and plastic plug and socket bodies
Metal products have excellent shielding properties
Standard and low current contacts available

Features and Benefits

Current rating is 5A
Cable mount
Crimp termination

Техническая спецификация
pdfZIF Connectors Contacts Data Sheet
Для использования с:
ZIF Разъемы
Концевая заделка:
Crimp
Материал контактов:
Медный сплав
Покрытие контактов:
Золото
Размер провода:
22 → 20 AWG
Род:
Male
Серия:
MS
Тип контакта:
Signal
Тип монтажа:
Кабельное крепление
