R114163000W, Radiall 50Ω Right Angle Cable Mount SMB Connector, Plug, RG178, RG196, Разъем

Radiall 50 Ohm SMB RF Coaxial Cable Right Angle Cable Clamp Plug Connectors

50 ohm SMB RF coaxial right angle mount plug connectors with snap-on mating and cable clamp connection. These RF coax SMB elbow cable clamp plugs have a PTFE dielectric, gold plated nickel body, gold plated female centre contact and are suitable for use with a variety of RF coaxial cable types.

Note

Plug has female contact.

Approvals

MIL-C-309012

Radiall - SMB Gold Plated

Sub-miniature connectors to MIL-C-39012 with snap-on coupling for a reliable and quick/disconnect system. Both clamp and crimp termination versions available.

Clamp types have options for RG174 and RG178 cable types
Crimp types accept various cable types
Recommended crimp tool stock no. 456-778

SMB MIL-C-39012 A

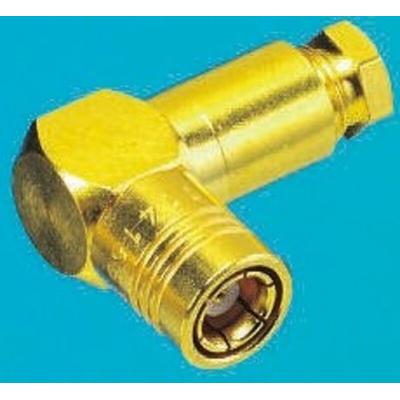

Right angle plug clamp type
