R114205000W, Radiall, jack Cable Mount SMB Connector, 50Ω, Clamp Termination, Straight Body, Разъем

Radiall 50 Ohm SMB RF Coaxial Cable Clamp Jack Connector

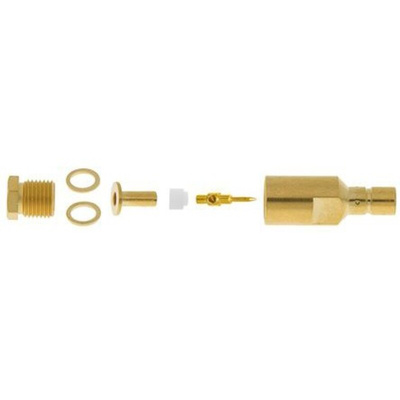

50 ohm SMB RF coaxial jack connector with snap-on mating and cable clamp connection. This RF coax SMB straight cable clamp jack has a gold plated nickel body, gold plated male centre contact and is suitable for use with various RF coaxial cable types including RG 188, RG 187, RG 179 and RG 316.

Note

Jack has male contact.

Approvals

MIL-C-309012

Radiall - SMB Gold Plated

Sub-miniature connectors to MIL-C-39012 with snap-on coupling for a reliable and quick/disconnect system. Both clamp and crimp termination versions available.

Clamp types have options for RG174 and RG178 cable types
Crimp types accept various cable types
Recommended crimp tool stock no. 456-778

SMB CABLE CLAMP TYPE

SMB Connector Product Data

SMB MIL-C-39012 A

Datasheet
