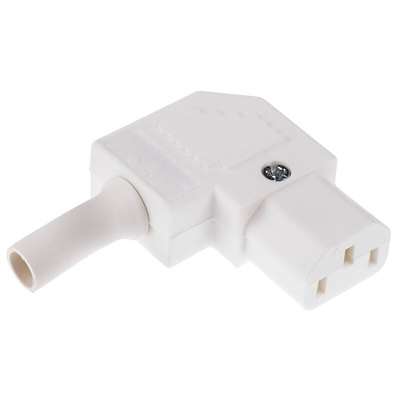

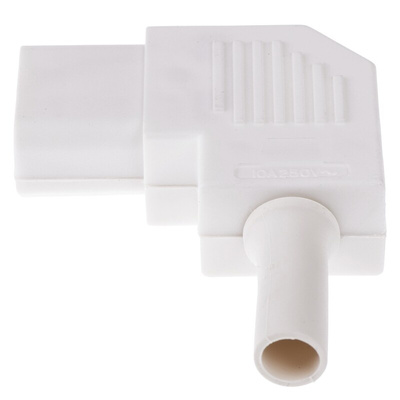

PX0587/SE/WH, Bulgin C13 Right Angle Cable Mount IEC Connector Socket, 10A, 250 V ac, Разъем

Rewireable IEC Sockets (C13)

From Bulgin, this re-wireable cable mounting sockets is available straight, right angle and bottom entry styles. These sockets have a contact resistance of <10mΩ, and an insulation resistance of >10⁴MΩ. Operating temperature is -40°C to +70°C. Max pin temperature 65°C. Kite mark licence no. 6745.

Note

Retaining clips for straight connectors available separately: RS stock nos.195-928 and 211-0935

Approvals

UL listed recognised component, CSA certified, VDE, IMQ (except PX0588), BSI

Approvals

UL recognised component, CSA certified, VDE; IMQ, NEMKO, BSI

IMQ EL648

BSI KM06745

UL E70394

IEC Connectors datasheet

Datasheet
