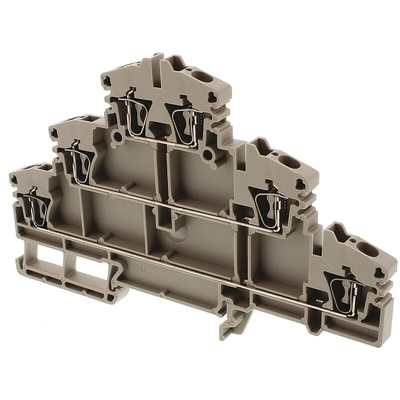

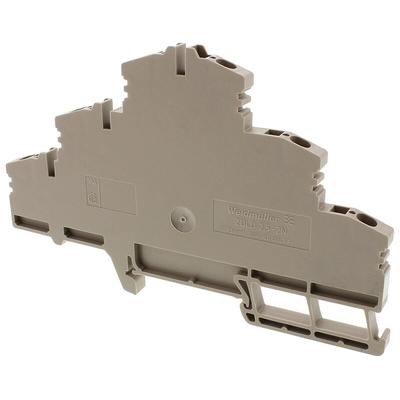

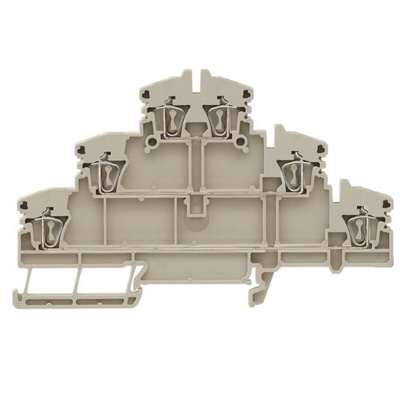

1782300000, Weidmuller ZDLD Series Brown DIN Rail Terminal Block, 2.5mm², Triple-Level, Clamp Termination

Weidmuller DIN Rail Terminal Block, Clamp Termination, 20A Current Rating - ZDLD Series - 1782300000

For a robust connection system, choose this DIN rail terminal block from Weidmuller. The triple-level component has six connections, so it has enough room to house multiple cables. Thanks to its current rating of 20A, you can rest assured it can meet the demands of your high-power electrical systems. It has compact dimensions of 110.5 (H) x 5.1 (W) x 69mm (D), so it's a shoo-in for crowded setups.

• Clamp termination points keep cables firmly in place
• Broad operating temperature range between -50°C and +120°C for use in demanding conditions
• Durable Wemid body is self-extinguishing for safety in the event of a fire

Applications

• Control panels
• HVAC systems
• Building control

What wire sizes can I fit into this terminal block?

You can insert wires ranging in size from 26 to 12AWG into this terminal block, so it'll come in handy for a number of different connections.

How do I mount this terminal block?

To mount this terminal block in a jiffy, simply snap it onto a standard TS 35 DIN rail.
