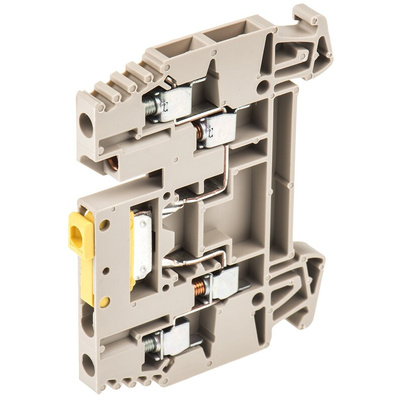

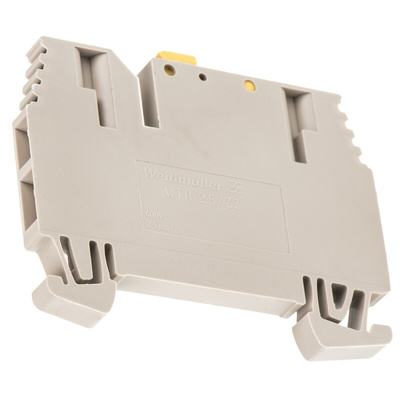

1039900000, Weidmuller WTR Series Brown Test Disconnect Terminal Block, 2.5mm², Single-Level, Screw Termination

Weidmuller Test-Disconnect Terminal Block, 14A Current Rating, 60mm Height - WTR Series - 1039900000

Prevent wire consequences with this single-level test-disconnect terminal block from Weidmuller. It lets you evaluate electric circuits without a voltage feed to ensure the safety of your applications, which helps curb damage and minimise downtime. As it has a broad operating temperature range between -50°C and +120°C, you can put it to the test in challenging conditions. Its Wemid housing provides good insulation and is self-extinguishing in the event of a fire, helping to promote workplace safety. Thanks to its clamping yoke technology, installation is a breeze. Simply snap the item onto a DIN rail for effortless and tool-free mounting.

Features & Benefits

• Current rating of 10A for use in high-power applications
• Accepts wire sizes of 26 to 12AWG for broad compatibility
• Brown colour for ease of identification in a colour-coded setup

Applications

• Industrial equipment
• Energy sector
• HVAC systems

How big is this test-disconnect terminal block?

This unit has compact dimensions of 60 (H) x 5.1 (W) x 46.5mm (D), so it won't take up too much space on your rail.

Approvals

VDE

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
