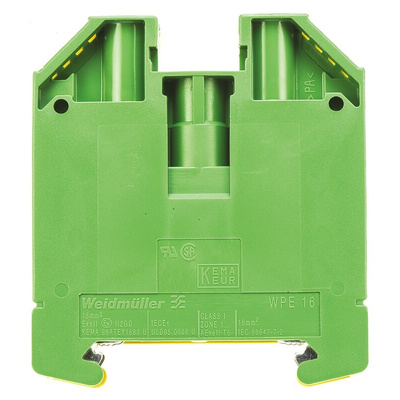

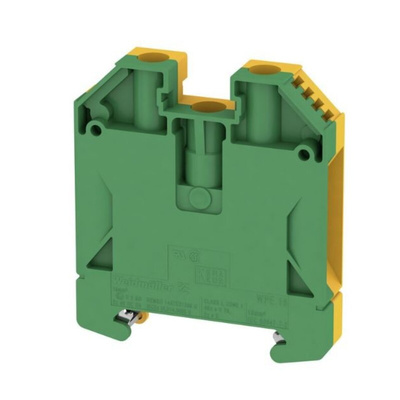

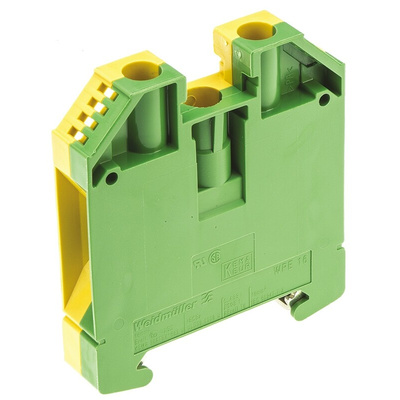

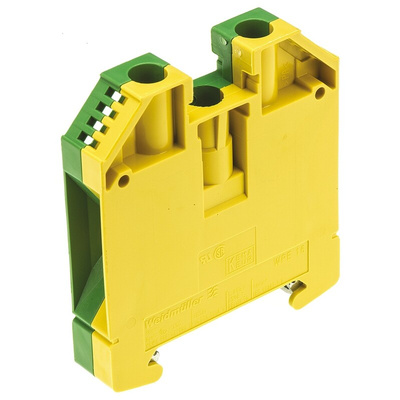

1010400000, Weidmuller 2-Way WPE 16 Earth Terminal Block, 16mm², 14 → 6 AWG Wire, Screw Down, Wemid Housing, ATEX, Блок заземления

Weidmuller Earth Terminal Block, 56mm Height, 1kV Voltage Rating - W Series - 1010400000

Use this earth terminal block from Weidmuller to ensure you're on safe ground with your electrical system. Its Wemid housing provides effective insulation for protection against shocks and electrical damage. Thanks to its green and yellow colours, it's instantly recognisable as an earth connection. Compact dimensions of 56 (H) x 11.9 (W) x 62.5mm (D) make this a space-efficient choice that fits in tight areas. As it uses an easy screw-down termination method, you can turn your hand to it with ease.

Features & Benefits

• Accommodates wires ranging in size from 14 to 6AWG for broad compatibility
• Self-extinguishing in 10 seconds or less for safety in the event of a fire
• Broad operating temperature range between -50°C and +120°C for use in harsh industrial conditions
• Light weight of 57.82g to place minimal strain on your setup

Applications

• Automotive manufacturing
• Industrial automation
• Power supplies

How environmentally friendly is this item?

The block is free from halogen and cadmium to minimise the risk of environmental contamination. It also reduces health risks as it won't emit toxic fumes in the event of a fire.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.

KEMA 98ATEX1683U

Datasheet
