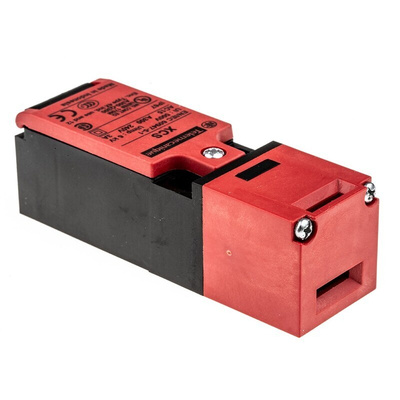

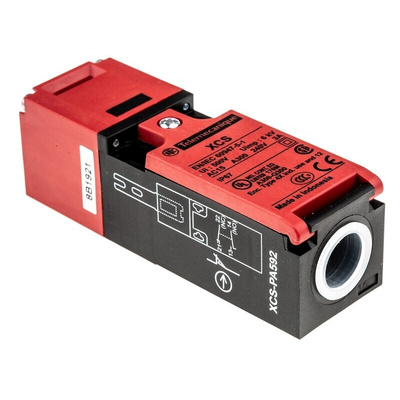

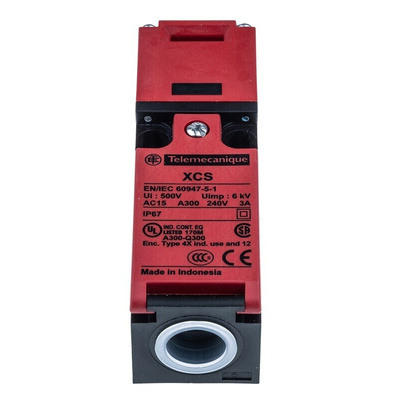

XCSPA592, Telemecanique Sensors XCSPA Safety Interlock Switch, Fibreglass, 1NC/1NO, Выключатель

XCS PA Series, Miniature

2 positive opening contacts as standard, on guard opening
Head rotates in 90° steps giving 8 actuator entry points
Minimum operating force for positive opening: 15N
Ingress protection IP67
1 x cable entry tapped M16 x 1.5 ISO or PG11
Actuator needs ordering separately (see stock no. 252-3870 typically)

Standards

Complies with EN1088, EN60204

Telemecanique Sensors Rotating Hinge Switch

The Telemecanique sensors XCSPA series interlock switch has 1NC/1NO switch configuration. It has a maximum voltage of 240VAC/250VDC and a maximum current of 6A. The housing material is polyamide and it is available in a key lock style.

Features and Benefits

• 2 positive opening contacts as standard, on guard opening
• Head rotates in 90° steps giving 8 actuator entry points
• Minimum operating force for positive opening is 15N
• 1 x cable entry tapped M16 x 1.5 ISO or PG11
• Operating temperature ranges between -25°C and 70°C

Certifications

• IP67 rated
• EN1088
• EN60204
• EN/IEC 60947-5-1
• CSA C22.2 No 14
• EN/ISO 12100
• EN/IEC 60204-1
• EN 1088/ISO 14119
• UL 508
