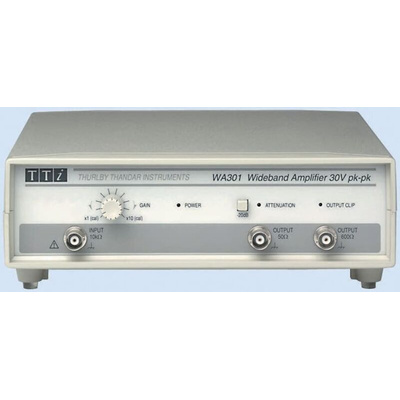

Aim-TTi WA301 RF Amplifier

Wideband amplifier

The WA301 is a wideband amplifier designed to be used alongside a function generator when an output voltage of 20 V peak is insufficient. The WA301 enables the output voltage to be boosted to 30 V peak to peak.
Alternatively, this amplifier may be used as a simple wideband amplifier in order to provide a higher output level (DAC, for example).

Aim-TTi Wideband Amplifier

The Aim-TTi wideband amplifier is primarily intended for waveform generation applications. It can be used as a slave to a function generator with the gain set to X10. This amplifier can be used to provide an adjustable output level source for waveform digital to analogue conversion. It can also be used to boost the open-circuit voltage to 30V peak to peak.

Features and Benefits

50ohm and 600ohm outputs
DC to 1MHz bandwidth
Extends the output range of function generators
Fully protected output
High impedance input ranges between 0dB and 20dB gain
Operating temperature ranges between 5°C and 40°C
Peak to peak output swing is 30V
Switchable output attenuator is 20dB

Certifications

EN61010-1
EN63126
