RS PRO Beige Polyetheretherketone PEEK Rod, 300mm x 16mm Diameter, Стержень

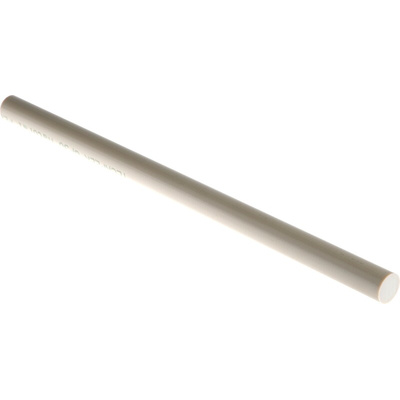

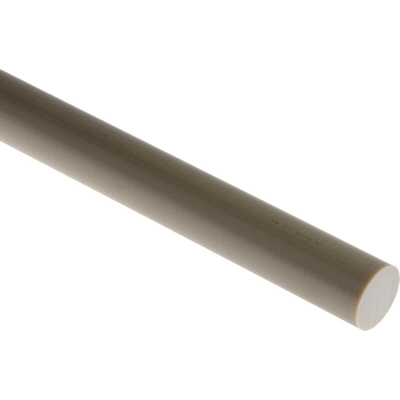

RS PRO Beige Polyetheretherketone PEEK Rod, 300 mm x 16 mm Diameter

This incredibly tough polyetheretherketone PEEK rod is from our tried-and-tested RS PRO range. Readily machinable, it comes in a length of 300 mm and can be configured to suit various applications.

PEEK GF30 is resistant to most environmental agents. With excellent chemical, hydrolysis, abrasion and even radiation resistance, this rod is suitable for most situations. It won't be damaged by fire nor water and can tolerate temperatures of up to +260°C. UL 94 V-0 rating means it has low flammability and burning stops within 10 seconds. This rod also has low moisture absorption and high creep resistance so retains its shape and rigidity for a long time.

This product has been subject to stringent testing to comply with international standards. Offering exceptional dimensional stability and thermal-mechanical strength, this PEEK rod is ideal for many highly demanding applications including insulators, plug connectors and support rings.

Features and Benefits

• Rod made from polyetheretherketone (PEEK)
• Beige in colour
• Length of 300 mm
• Rod diameter of 16 mm
• Density of 1.49 g/cm³
• Tensile strength of 180 MPa
• UL 94 V-0 flammability rating so burning stops after 10 seconds
• Maximum operating temperature of +260 °C
• Elongation of 2.5%
• M 103 Rockwell hardness rating
• Conforms with DIN 53479, DIN53765, DIN53765-D-10 and ASTM-D 1929 standards for testing of plastics and elastomers
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Standards

DIN 53479; DIN 53765; DIN 53765-D-10; ASTM-D 1929
