RS PRO Beige Polyetheretherketone PEEK Rod, 300mm x 30mm Diameter, Стержень

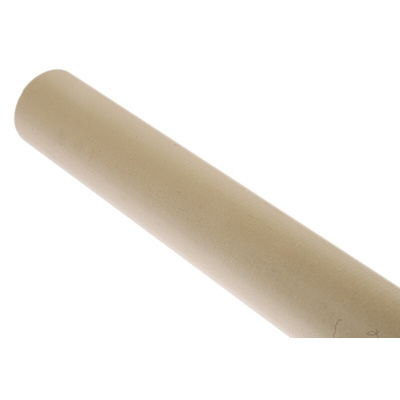

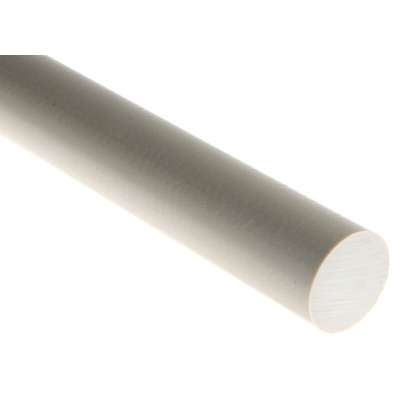

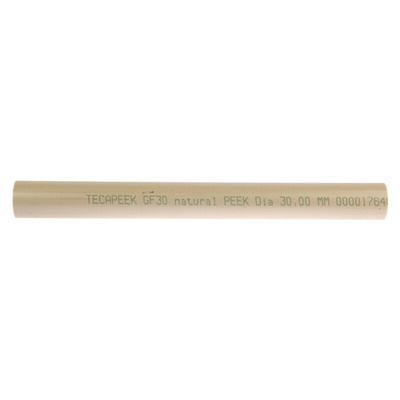

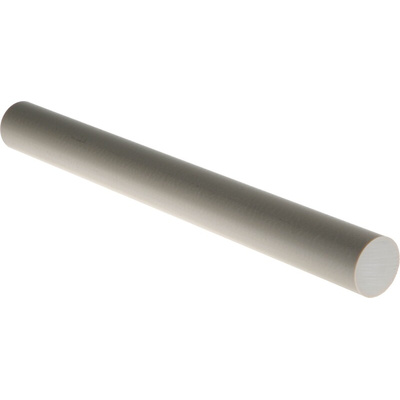

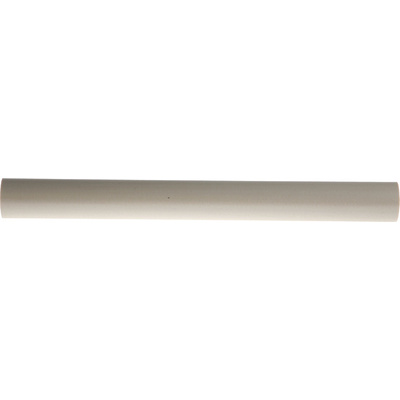

RS PRO Beige Polyetheretherketone PEEK Rod, 300 mm x 30 mm Diameter

Designed for quality and durability, this beige polyetheretherketone PEEK rod is useful for demanding applications in heavy-duty environments.

It measures 300 mm in length and 30 mm in diameter and has a high tensile strength of 180 MPa. Made from PEEK GF30, it's resistant to chemicals, hydrolysis, abrasion, radiation and other harsh environmental conditions. It's electrically insulating and is safe for use at temperatures up to +260°C.

Part of the RS PRO series, this product has been tested for safety and reliability. It's rated UL 94 V-0 by international science safety company Underwriters Laboratories, meaning it's self-extinguishing within 10 seconds. It also meets the Deutsches Institut für Normung (DIN, or German Institute of Standardisation) and American Society for Testing and Materials standards for the testing of plastics and elastomers.

Readily machinable and suitable for various applications, this PEEK rod is commonly used for plug connectors, support rings and insulators.

Features and Benefits

• Polyetheretherketone PEEK rod
• Beige in colour
• Length of 300 mm
• Diameter of 30 mm
• Density of 1.49 g/cm³
• Tensile strength of 180 MPa
• Maximum operating temperature of +260°C
• Elongation of 2.5%
• Water absorption of 0.1%
• M 103 Rockwell hardness rating
• UL 94 V-0 flammability rating so burning stops after 10 seconds
• Conforms with DIN (German Institute of Standardisation) 53479, 53765, 53765-D-10 and ASTM-D (American Society for Testing) 1929 standards for testing of plastics and elastomers
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Standards

DIN 53479; DIN 53765; DIN 53765-D-10; ASTM-D 1929
