1.130.000.033, Kubler AK07.00, 7 Digit, Counter, 25Hz, 24 V dc, Счетчик

Kubler Digital Counter

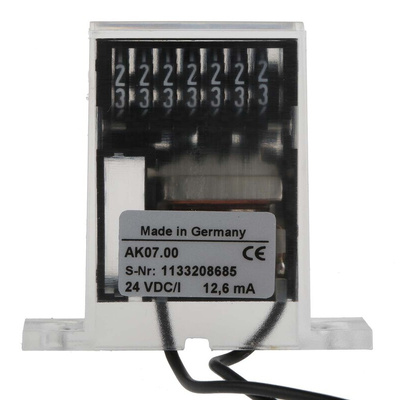

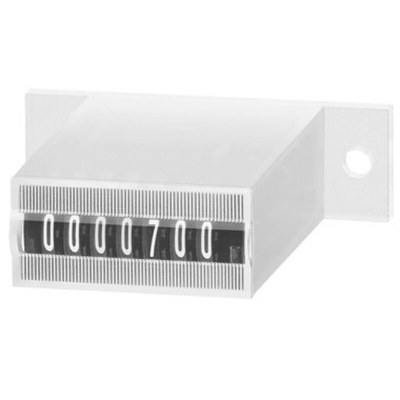

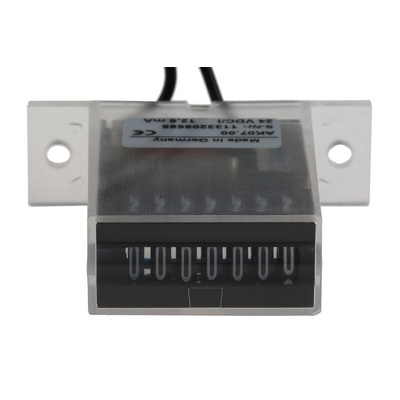

The Kubler AK07.00 series digital counter is a 7-digit electromechanical base mount counter has 24VDC supply voltage. As a base mount counter with a very high level of shock resistance, it can be used for numerous diverse application areas. This counter has a maximum count frequency of 25Hz.

PCB, surface and DIN rail mounting
All the units are non-resettable and are continuously rated. Counters may be damaged if connected to inductive loads where high voltage transients may be present. Should this be unavoidable, use a suitable suppression circuit (refer to the Capacitors section) connected across the count or reset coil terminals. The count rate of all products is 10Hz.

Features and Benefits

Low power consumption
suitable for battery operation
Non reset totalising counter
Magnifying lens increases readout to 4mm
Retains count during power failure
Unaffected by shock, vibration or magnetic fields
Operating temperature ranges between -20°C and 70°C

Applications

General quantity counting
Alarm systems
coin-operated machines
Electricity meters
Vending and slot machines
Photocopiers and medical equipment

Certifications

IP65 rated

Datasheet
