224-112, Wago 224 Series Connector, 24A

224 Series

Lighting connectors designed specifically for the application of fitting wall mounting and ceiling luminaries. Prepare wires by stripping to 9-11mm.

Reliable and vibration proof interconnections
Installation side cable acceptance, 1.0 – 2.5mm² solid pushwire
Lighting side cable acceptance, 0.5 – 2.5mm² solid and fine-stranded (flex) cage clamp

Note

Stock no. 181-4068 has a cage clamp and a push wire connection, stock no. 297-3174 has 1 cage clamp but 2 push wire connections
Stock No. 178-6676 has 2 cage clamp connections. See Connector on the right hand side of the image

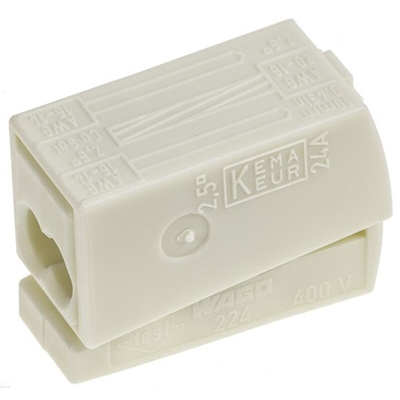

Wago Lighting Connector, Side-Entry Wiring, 0.5 to 2.5 mm² Wire Size - 224 Series - 224-112

This lighting connector from Wago shines out as a first-class choice for mounting ceiling and wall fixtures. Voltage-rated at 400V and current-rated at 24A, it handles high-powered systems with ease. The module is built to cope with a maximum continuous service temperature of +105°C, so it withstands the high heat often generated by illumination equipment. Cage clamp and push-wire connectors allow you to make quick, tool-free connections, creating a reliable system with the minimum of hassle.

Features & Benefits

• Wire sizes stamped on top of the housing for easy reference
• Pack of 10 connectors for multiple assemblies
• Resistant to vibration for a setup that stays the course
• White colour gives it an unobtrusive appearance
• Weight of 2.1g keeps load on installation surfaces light

Applications

• Transport infrastructure
• Gymnasiums and sports centres
• Office blocks

What sized wires does this lighting connector take?

You can use this connector with 0.5 to 2.5mm² solid or stranded wires on the lighting side. On the installation side, it accepts wires sized between 1 and 2.5mm².

Approvals

ASTA; BBJ; CCA; DEMKO; GL; KEMA; NEMKO; OVE; RMR; Rose TesT; SEMKO
