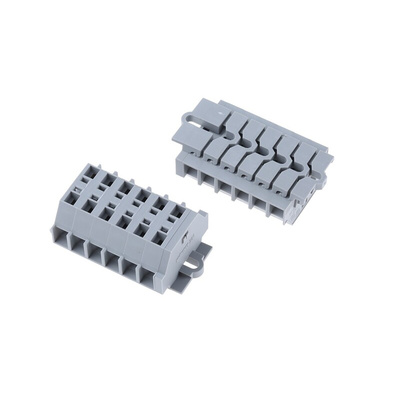

261-106, Wago 261 Series Grey Terminal Strip, 2.5mm², Single-Level, Cage Clamp Termination

Cage Clamp - 261 Series

Cage clamp® connection terminal blocks with side entry are screwdriver actuated and include fixing flanges at either end of the terminal block. A DIN Rail mounting adapter is also available which screw mounts into the base of the terminal blocks. It is recommended that the maximum distance between adapters is 35-40 mm.

Features and Benefits

• 2 Conductor-through terminal block
• 6 kV surge voltage
• 101-3877 is a mounting foot with screw for DIN 35 rail

Wago 261 Series Terminal Strip, 24A, 500V - 261-106

This Wago terminal strip with a 6mm pitch, from the renowned series is a top of the line product designed for professionals in automation, electronics, electrical, and mechanical industries. This terminal strip offers a seamless solution for various applications with its cutting edge features and high quality construction.

Features & Benefits

• Designed for 14 AWG wires, suitable for a cable CSA of 2.5mm²
• Features cage clamp termination for easy and secure connections
• Supports a current rating of 24A, ideal for various power applications
• With a voltage rating of 500V, ensuring safe operation
• Single level terminal block for simplified wiring configurations
• Grey colour for easy identification and organisation
• Offers reliable performance with no fused components

Applications

• Perfect for Industrial automation systems
• Ideal for electrical control panels
• Suited for machinery and equipment wiring
• Great for control circuits in electronic devices
• Reliable option for power distribution applications

Can it support wires within the 14 AWG range?

Yes, the terminal strip is specifically designed to accommodate 14 AWG wires for various applications.

Will it be suitable for use in automation systems?

Yes, the terminal strip is ideal for automation systems in industrial settings due to its reliability and performance.

Is it easy to connect wires using the cage clamp termination method?

Yes, the cage clamp termination method offers a secure and hassle-free way to connect wires efficiently.

Can this terminal strip handle high voltage requirements?

Yes, with a voltage rating of 500V, the terminal strip is well-equipped to handle high voltage applications with ease.

Is the grey colour of the terminal strip significant?

The grey colour not only ensures easy identification but also adds a level of organisation to the wiring setup.

260 Series

Series 261 Terminal Strips with Fixing Flange or Snap in Mounting Foot Data Sheet

CENELEC 96-00357
