RS PRO Zinc Passivated Steel Hydraulic Ball Valve G 1/4, Шаровой кран

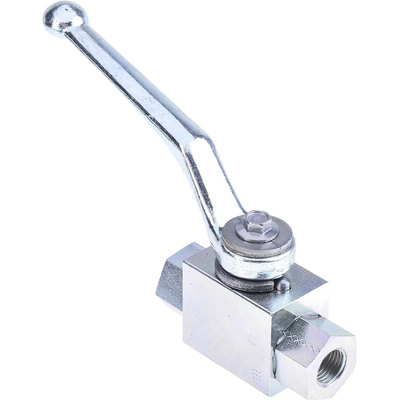

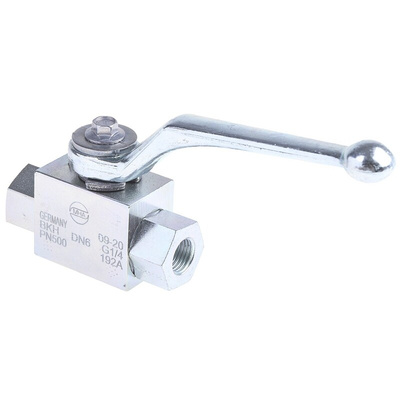

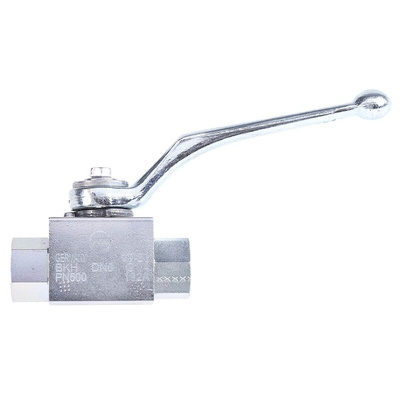

RS PRO Zinc Passivated Steel Line Mounting Hydraulic Ball Valve G 1/4

From our RS PRO range, this is a heavy-duty hydraulic ball valve that's been made to last. It's ideal for regulating the flow of liquids or gases and is straightforward to install.

Constructed from carbon steel, this product benefits from the metal's strength and durability. It's coated with zinc to withstand corrosion and has a nitrile rubber seal that combines excellent oil and fuel resistance with high tensile strength. Consequently, this valve can handle high-pressure operation for many years of reliable use. With a tolerance of up to 500 bars, it can withstand a force equivalent to being roughly 5000 m below sea level. This hydraulic ball valve has a quarter-inch thread and screw handle for easy connection and disconnection.

Thoroughly tested to comply with our exacting standards, this line-mounting hydraulic ball valve is dependable and long-lasting. It's appropriate for a wide range of industrial applications, especially shut-off and control functions, thanks to its tight seal.

Features and Benefits

• Line mounting hydraulic ball valve
• Body made from zinc passivated carbon steel
• Brass ball
• 2-way ports with a British Standard Pipe (BSP) G 1/4 in thread
• Nitrile rubber stem seal and POM-Mos2 ball seal
• Operating temperature range of -20°C to +100°C
• 500 bar maximum operating pressure
• BKH series

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
