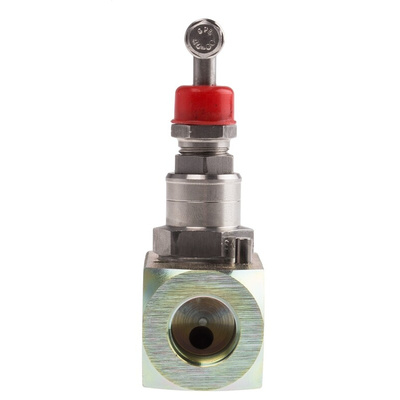

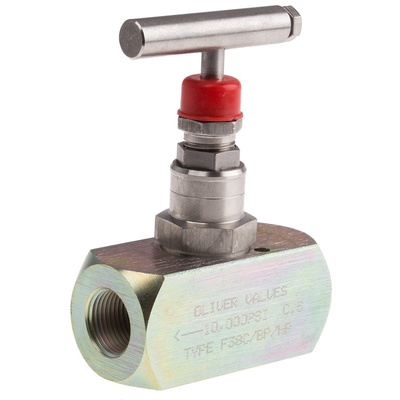

RS PRO Inline Mounting Hydraulic Flow Control Valve, BSP 3/8, 700 bar, 40 L/min

This valve from RS PRO provides an easy way to allow or prevent fluid flow through a pipe. It is made with a female BSP thread on both sides to allow existing connectors to be fitted to the valve. The valve uses a double-acting design, meaning that, when closed, it will prevent fluid flowing in either direction, so it doesn't matter which way round it's fitted. The valve is designed to be operated by hand, allowing a quick cut-off of the flow.
The valve is designed with high pressure in mind – the 700 bar operating maximum allows it to be used in almost any environment and the built-in PTFE thread sealing material helps to prevent any leaks. This pressure rating, along with the wide operating temperature range, makes this valve ideal for industrial applications where conditions can be quite extreme.

Features and Benefits

• Carbon steel body material
• BSP 3/8 connection port thread
• F manufacturer series
• Maximum flow rate of 40 L/min
• Maximum operating pressure of 700 bar
• Operating temperature range of -20°C to +240°C
• Inline mounting type
• PTFE (polytetrafluoroethylene) seal material
• Thread size of 3/8 in
• BSP thread standard
