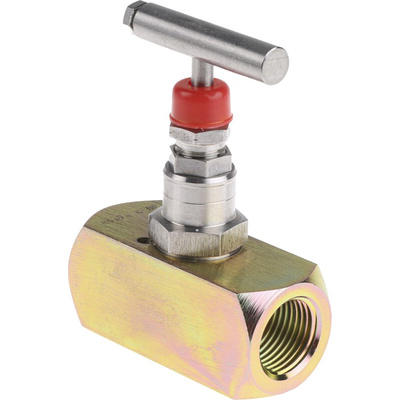

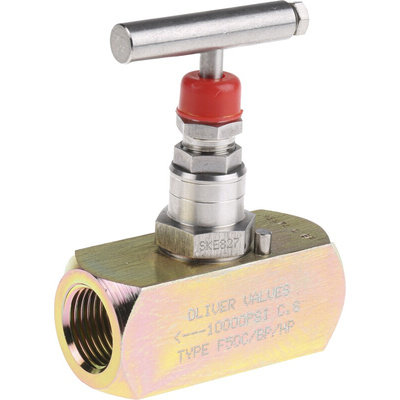

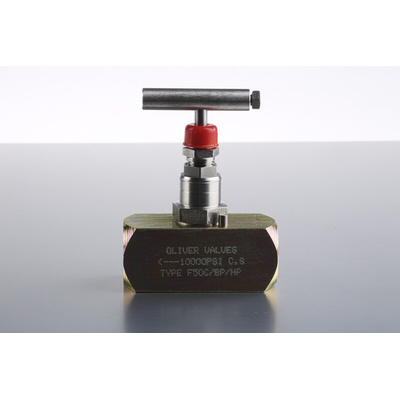

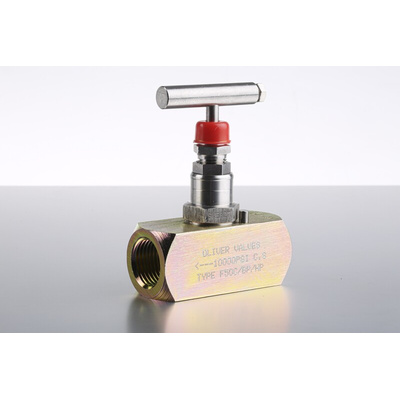

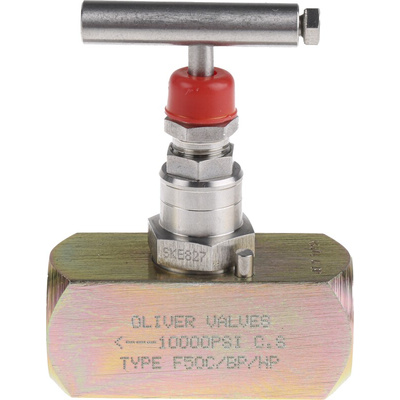

RS PRO Inline Mounting Hydraulic Flow Control Valve, G 1/2, 700bar, 40L/min, Клапан

RS PRO Inline Mounting Hydraulic Flow Control Valve, G 1/2, 700 bar, 40 L/min

This RS PRO valve gives you a simple way to prevent or allow fluid flow in a pipe. Both sides have a female BSP thread, so you can fit existing connectors to the valve.


It has a double-acting design, so it keeps fluid from flowing in both directions when closed regardless of which way round the valve has been fitted. Its design allows it to be used by hand, meaning you can quickly cut off the flow when needed.


You can use this valve at high pressures of up to 700 bar. Its built-in PTFE (polytetrafluoroethylene) thread sealing material prevents leaks. Thanks to its high pressure rating and broad operating temperature range, this valve is safe for use in extreme industrial environments.

Features and Benefits

• Carbon steel body material


• G 1/2 connection port thread


• Maximum flow rate of 40 L/min


• Maximum operating pressure of 700 bar


• Operating temperature range of -20°C to +240°C


• Inline mounting type


• PTFE (polytetrafluoroethylene) seal material


• Thread size of 1/2 in


• G thread standard

Datasheet
